3.5'' Industrial Motherboard with 1037u, Onboard 2GB DDR3 Memory

Name: 3.5'' Industrial Motherboard with 1037u, Onboard 2GB DDR3 Memory
Brand: china-manufacturer-directory.com
SKU: 750134425
Availability: InStock
Rating: 4.7 (137 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	US $ 215/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	EPIC-N80L _2G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Embedded Industrial Motherboard
Printed Circuit Board:	Four Layers
Main Chipset:	Intel
Structure:	Mini-ITX
SATA Interface:	SATA2.0
Audio Effects:	Not HiFi
Memory:	DDR3
Integrated Graphics:	Integrated Graphics
Maximum Memory Capacity:	8G
Main Board Structure:	Integrated

Product Description

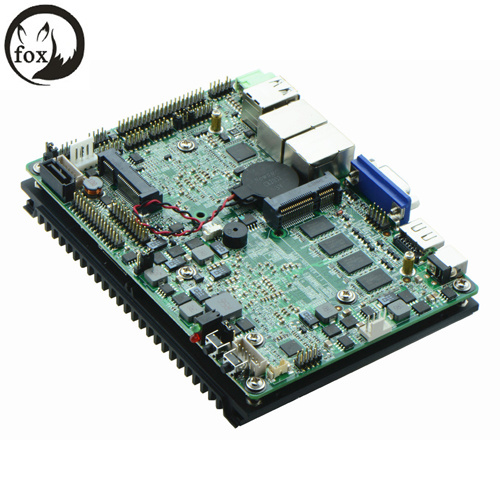

3.5'' Industrial Motherboard with 1037U,Onboard 2GB DDR3 memory

EPIC-N80 - 3.5 " 1037U Mini PC Computer Mainboard, 12V Fanless Computer Motherboard

1.3.5" 1037U Mini PC Computer Mainboard
2.DDR3, VGA/HDMI/LVDS/MINI-PCIE/MSATA
3.2*Gigabit LAN
4.DC_12V Single Power supply

Get more detailed information about our products,

Please visit our website:Fox-etech.COM

FOX ETECH - Intel Industrial Motherboards /Networking server Appliance/ HTPC.

All raw material (Such as memory etc) are purchased by manufacurer.Not second hand.All are

Brand new.

FOX ETECH also provide the service of custom design to meet your special requirement.

3.5" 1037U MINI Computer Motherboard With Intel HD GPU&HDMI, Onboard MINI PCI-E&SIM Card Slot, Support 1080P /3G

Model NO.	EPIC-N80 VER:1.2
CPU	Intel® 1037U Dual-core 22nm Processor 1.8GHz TDP 17W
Chipset	Intel® NM70 Chipset
Memory	Integrated DDR3 2GB Memory,Max. Up to 4GB
Graphics	Built-in Intel® HD Graphics
	Support VGA,HDMI,LVDS display output
	LVDS supports dual 24bit and synchronous/asynchronous display
Expansion Slots	1* Mini-PCIE (Support WIFI/3G)
	1* MSATA, support SSD/WIFI(SSD 600MB/s)
LAN	2* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN
Storage	1* SATAII 300MB/s
	1* JSATAII pin, Can be transferred to SATA disk
Audio	Integrated Realtek HD ALC662 for 6-Channel output,support MIC & Line-out
Rear I/O	1* 12V DC_JACK input
	1* HDMI
	1* VGA
	2* RJ-45 LAN
	2* USB 2.0
	1* Line Out(Green)
	1* POWER,1* RESET,1* LED1(POWERLED/HDDLED)(Front panel)
Internal I/O	1* LVDS 2*15pin
	1* JVGA1 2*5pin
	6* RS232 COM, COM2 supports RS485/422
	1* JLPC 2*6pin
	4* USB 2.0
	1* PS/2 1*6Pin
	1* AUDIO pin (Front Audio interface 2*5pin)
	1* FP1 (2*5pin Front panel buttons and LED connected)
	1* SIM card
	2* JSATA2 1*5pin
	1* PWROUT (Hard drive power connector)
	1* LVDS INVERTER (Backlight power supply interface)
Fun interface	1* CPUFAN 3pin
GPIO	1* GPIO (Support 4-way GPIO function)
BIOS	AMI 32MB Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12VSingle power supply
Operating Temp.	-10ºC~60ºC
Storage Temp.	-20ºC~70ºC
Humidity	0%-95%(relative humidity; non-condensing)
Dimension	148mm x 102mm
