Product Specifications
| Prod Model: |
CED-99E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Screen: |
Qvga 320 X 240, 16.7m Colors |
| Working Time: |
3-4 Hours |
| OSD Language: |
English Default and Other Languages |
| Battery: |
AA Type Alkaline Battery 4ea |
| Camera Unit: |
Water Splash Resistance (Ipx67) |
| Zoom In/out: |
Max.5X |
| Interface: |
USB 2.0 (Compatible to USB 1.1), |
| .Image Capture: |
JPEG File Format |
Product Description

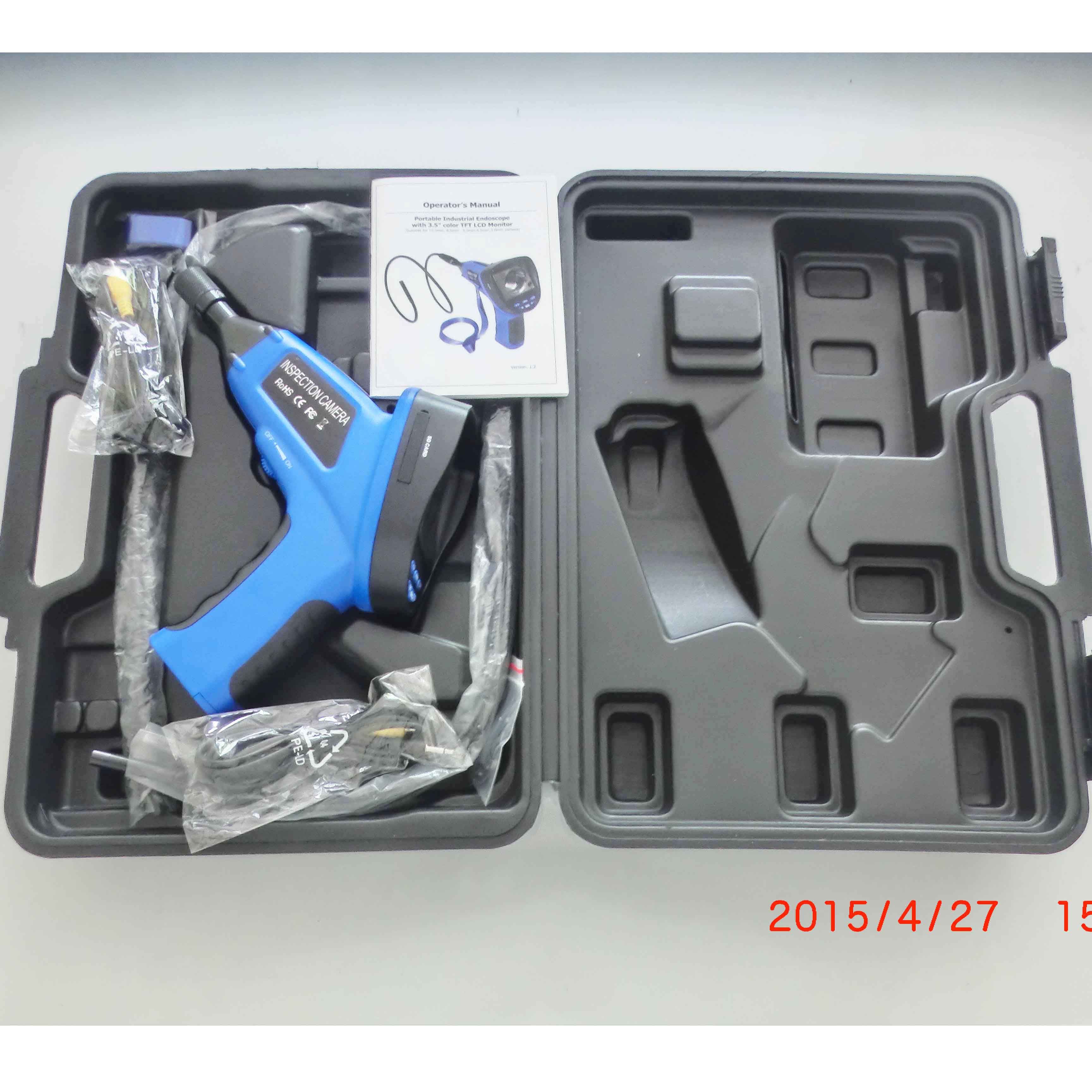

Multi-functional recordable video endoscope
Model No.:CED-99E
Specification:
1.Φ8.5mm Len with 4pcs/6pcs adjustable LED lights brightness(waterproof);
2.Φ6.8mm detachable flexible Tube with 1 Meter length(waterproof);
3.Camera Resoluton 640*480 pixels;
4.3.5" TFT LCD Monitor with zoom in/out 5 times;
5.Photo,Video,playback,Storage with SD card(32GB max.);
6.Built-in speaker and micro phone
7.Image rotational 180°for long press the zoom in/out button;
8.AV out,USB interface,DC In for another power supply method;
9.Powered by AA Battery 4pcs;Useful optional accessories:mirror,magnet,hook,sling;
10. Camera unit: Water Splash Resistance (IPX67)
11.Image Capture in JPEG file format
Video Recording in Motion JPEG (AVI file format)
12.Resolutions: Image - Standard JPEG,
Video (w/audio) - up to D1 resolution @30fps
13.Interface:USB 2.0 (compatible to USB 1.1),
Composite Video Out
14. Changeable and detachable Camera Shaft (10.8/8.5/5.5mm)
15.OSD Language: English - Default and other languages
Usage:
Extend Your Hands and Eyes.
Appropriate for use in surveying pipes,equipments,furnishing installation,underwater viewing,parts assembly,construction sites,workshops,laboratories,education,wildlife surveillance,car maintenance and repairing,hard-to-reach areas,etc
Camera Shaft part:
Camera Outer meter | 10.0/8.5mm | 5.5mm | 4.5/3.9mm |
| Image Sensor | 1/9" VGA CMOS Image Sensor | 1/12" VGA CMOS Image Sensor | 1/18" VGA CMOS Image Sensor |
| Array Size | 640 x 480 | 640 x 480 | 320(H)x240(V) |
| Resolution | 0.32M pixels | 0.32M pixels | 0.1M pixels |
| Max image Transfer Rate | 60fps for VGA
120fps for QVGA | 60fps for VGA
120fps for QVGA | 60fps for VGA
120fps forQVGA |
| Sensitivity | 1.3V/(Lux.sec) | 1.3V/(Lux.sec) | 350mW/(Lux.sec) |
| Focal Range | 6CM | 6CM | 6CM |
| Optimized Focal Range | 2CM ~ 15CM | 2CM ~ 15CM | 2CM ~ 15CM
|
| Shaft Length | 1M | 1M | 1M |
| LED Light | 4LEDs | 4LEDs | 2LEDs |
| Accessories | Hook, Mirror, Magnet (optional) | Hook, Mirror, Magnet
(optional) |
|
