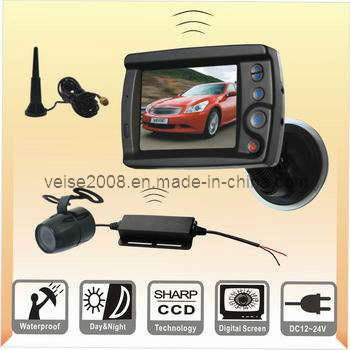

3.5"Wireless Car Rear View System with Free Voltage DC11-32 Volts
Product Specifications
| Prod Model: |
DF-3560751 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400(CD/M2) |
| Free Viewing Angle: |
150degree |
| Shockproof: |
10g |
| Free Operating Voltage: |
DC8-32V |
| Type: |
Monitoring System |
| Application: |
Sound Monitoring |
| Feature: |
Vandal-proof |
| Video Capture System: |
Video Camera |
| Video Transmission System: |
Wireless Transmission |
| Software Function: |
Monitoring |
| Software Usage: |
Vehicle Monitoring Software |
| Client Software: |
Without Client Software |
| Model: |
Monitor Type |
| Sensor: |
CMOS |
| Technology: |
Wireless |
Product Description
*3.5" Digital TFT LCD Color Monitor;
*Wide voltage input: 11-32v voltage;
*Built-in 4 CH(2.414/2.432/2.450/2.468)GHz wireless receiver;
*Responsing time less than 2" when reversing;
*100 meter wireless receive distance without block;
*4 image switch automatically, shift time 0-30";
*Reversing CAM image is of priority at any time
| PRODUCT SPECIFICATION |
| Wireless Rear-view Transmitter Camera |
| MODEL: DF-8015 (Waterproof Color CMOS Camera) |
| Horizontal Resolution: 330TV Lines |
| Effective pixel: NTSC: 510(H)X496(V); PAL: 628(H)X586(V) |
| Usable illumination: 3Lux(F: 1.4) |
| Water resistance: IP66, Alloyed shell, outdoor use |
| Lens: 2.8mm , 150 degree wide angle |
| Power box built in 2.4GHz transmitter and omni-directional antenna, Built-in radio |
| About 100 meter without any block |
| Power supply: DC12V-24V |
|
| Wireless Digital TFT-LCD Color Monitor |
| 3.5" Digital LCD Color Monitor (Model: SP-356) |
| Built-in 4 CH(2.414/2.432/2.450/2.468)GHz wireless receiver |
|
| About 100 meter without any block |
| Responsing time is less than 2” when reversing |
| Receiving power: -80 dB |
| Power Supply: DC11~32V |
| External dimensions: L*W*T(110X77X23)mm |
| Built in 2.4GHz wireless receiver, Auto mirror image video when reversing |
|
| Product Accessories |
| Monitor bracket, Electrical connecting cable, Auto cigarette lighter |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
