Sinotruk Hubei Huawin Special Vehicle Co., Ltd. >> 3-Axle V Type Bulk Cement Semi Trailer - 50m³

3-Axle V Type Bulk Cement Semi Trailer - 50m³

Name: 3-Axle V Type Bulk Cement Semi Trailer - 50m³
Brand: china-manufacturer-directory.com
SKU: 631100265
Availability: InStock
Rating: 4.7 (132 reviews)

Supplier:	Sinotruk Hubei Huawin Special Vehicle Co., Ltd.
Price:	US $ 32800-33400/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SGZ
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Tare Weight:	14500kg
Payload:	55000kg
Overall Length:	12700mm
Overall Height:	3900mm
Overall Width:	2500mm
Tanker Capacity:	50cbm
Independent Suspension Type:	Cross Arm Type
Towing Pin Type:	"I" Type
Towing Pin Diameter:	90mm
Towing Pin Material:	Carbon Steel
Universal Joint Type:	Rigid Universal Joint
Differential Gear Type:	Gear Type
Hook Type:	Single
Brake Pad Material:	Semimetal
Impeller Type:	Front Semi-open Type
Type:	Semi Trailer

Product Description

Bulk cement tanker semi trailer, is specially designed for bulk powder cargo transportation, like cement, corn, wheet, and other grains. Round cylinder design is good for fast-speed discharging(3-4 discharging outlets) and container transportation ( tanker body and chassis can be seperately loaded into contaier and conncetec by bolts and nuts).

Capacity: 50CBM
Manhole Cover: Alluminum manhole cover
Air compressor: 9.5CBM air compressor
Engine: Disel engine or electrical motor-optional

Chassis: Special designed chassis for heavy duty and extra durability
Axle: German style(BPW, L1, etc) or American type(Fuwa).
Suspension: Mechanical suspension or air suspension-upon requirement
Landing Gear: 28T, two speeds.
King Pin: 2"or 3.5" bolt-in King pin

DIMENSIONS
Tare Weight	14500kg
Payload	55000KG
Overall Length	12700mm
Overall Height	3900mm
Overall Width	2500mm

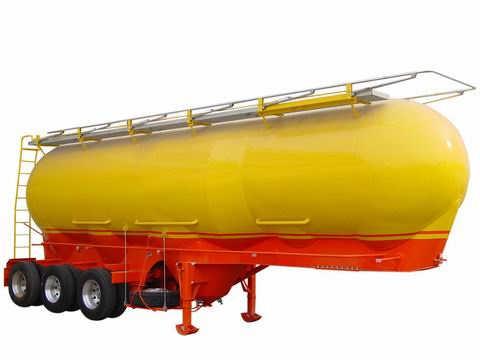

Photo for reference. Final products can be made according to exact requirements
SPECIFICATION
Chassis	Special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Axle	3 axles
	Brand Name: HJ 16ton
Suspension	Germany design heavy duty mechanical suspension
Leaf Spring	13 pieces leaf spring
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.5-20 wheel rim
Tyre	12.00R20 steel tire 12 PCS
Spare Tire	One set of spare tire including 1 carriers
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Key accessory
Capacity		50m³ with 3 component
Engine		Diesel engine
Air compressor		0.2Mpa
Inner Fluidized Bed		Air bag
Manhole cover		500mm manhole cover, 3 sets
Discharge Pipe		4" seamless steel tube+hose
Tanker body		Q235A/6mm steel sheet
End plate		Q235A/6mm, ball shape

Hua-Win is a company with a tradition of over 50 years in the engineering industry and has aggregated a wide experience in this field. The main strategic program is focused on the production of trailers, tankers, dump trucks and other special vehicles. The company currently employs 1100 people and enjoys strong growth. Its turnover in 2007 is USD66.5 million and in 2008 it reached USD73.7 million. Hua-Win now ranks top 5 in special vehicle in China. The company' S total area is 430 acres and in 2011 its annual production ability will expand to 20, 000 units.

Hua-Win is customer orientated and manages its business processes with the dynamics, efficiency and reliability to reach high customer satisfaction ratings. The combination of modern technology and human oriental assures a strong and competitive position in both domestic and international market.

Hua-Win has set up 27 service centers throughout China to provide ready-service for its customers. Complete coverage of sales service greatly reduces the distance between Hua-Win and its customers. Anytime customers want, Hua-Win will be there with them.

Working with reliable local partners, Hua-Win now is a key player in North Africa (Algeria, Libya, and Egypt), East Africa (Tanzania, Kenya, Uganda and Malawi)West Africa (Nigeria, Ghana, and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia., and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia.
