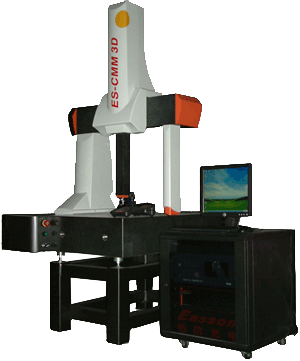

Product Specifications
| Prod Model: |
ES-CMM 1086, ES-CMM 1218, ES-CMM 1521 |
Product Description
Structure type: Adjustable bridge-type
Transmission type: DC servomotor system / preloaded high precision pneumatic bearing
Length measuring system: RENISHAW open-type grid scale, resolution 0.5μm (option: 0.1μm)
Worktable: High density granite worktable (00 Grade)
Working ambient: Temperature(20+-2)C, humidity 55%-65%, gradient of temperature 1º C/m, temperature change1º C/h
Pneumatic pressure: 0.4MPa_0.5MPa
Air flow: 100 L/min--120 L/min
Dimension: 2.0m*1.5m*2.7m, 2.3m*1.8m*3.0m, 2.6m*2.1m*3.3m
Load bearing: 1000kg
Weight: 2000kg 2200kg 2500kg
ES-CMM(manual) Technical data:
Travel range: 500mm*600mm*400mm
Resolution: 0.5μm
Working ambient: Temperature(20+-2)º C, humidity 55%-65%
Pneumatic pressure: 0.4Mpa-0.5NPa
Air flow: 100L/min-120L/min
Dimension: 1.2m*1.4m*2.2m
Load bearing: 500Kg
Weight: 850Kg
ES-CMM(manual) Probe Measuring System:
Control system: CMM-Manager(American IQ)
Working mode: Manual
Measuring System: RENISHAW(England) Mh20I+TP20
3D detection accuracy: (E): (3+L/300)μm
| Model | ES-CMM 1086 | ES-CMM 1218 | ES-CMM 1521 |
| X axis travel | 800mm | 1000mm | 1200mm |
| Y axis travel | 1000mm | 1200mm | 1500mm |
| Z axis travel | 600mm | 800mm | 1000mm |
SuZhou Easson Optoelectronica Technology Co., Ltd. Belongs to the HongKong Easson Group. Our company majors in reverse engineering, 3D&2D's measurement &mapping, has much ability and experience in optics, electrics, 3D measuring and program. Our company has the ability to product design, manufactory, examination, sell, service, training etc. In the near ten years, the brand Easson has became a famous one, and there are manufactories in Taiwan, ZhuHai&SuZhou. We have good sell channels in the China mainland, and we keep ahead bother technology and sell. Because we are major in precision and reliability, Easson series products famous for it's high quality, high stability& good cooperation with customs in many process fields. According to your product's structures and characters, Easson' experts can make better resolutions for you in order to best efficiency, precision&quality at reasonable price.
Our company's main products such as Glass grating linear transducer, DRO, Optical profile Project, Tool Presetter, Vision measurement machine, Laser scanner machine, 3D measurement machine are widely used to product design, half-product, examination, element mapping in the filed of machinery, mould, electronics, aviation, automobile, plastic, gear, PCB circuit board etc to low work intensity&improve work efficiency.
Our company's production manufactory and service after sell have passed the ISO 9000 National Quality series of England' National Quality Assurance Ltd. (NQA).
"Quality, Technology, Innovation, &Service" is our company's manage faith. Looking forward the future and facing the chance& challenge, our company will go on making high-technology products to satisfy customs needs at the base of our company's strong design ability&the close relation with customs.
