Product Specifications
| Prod Model: |
MCH-860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

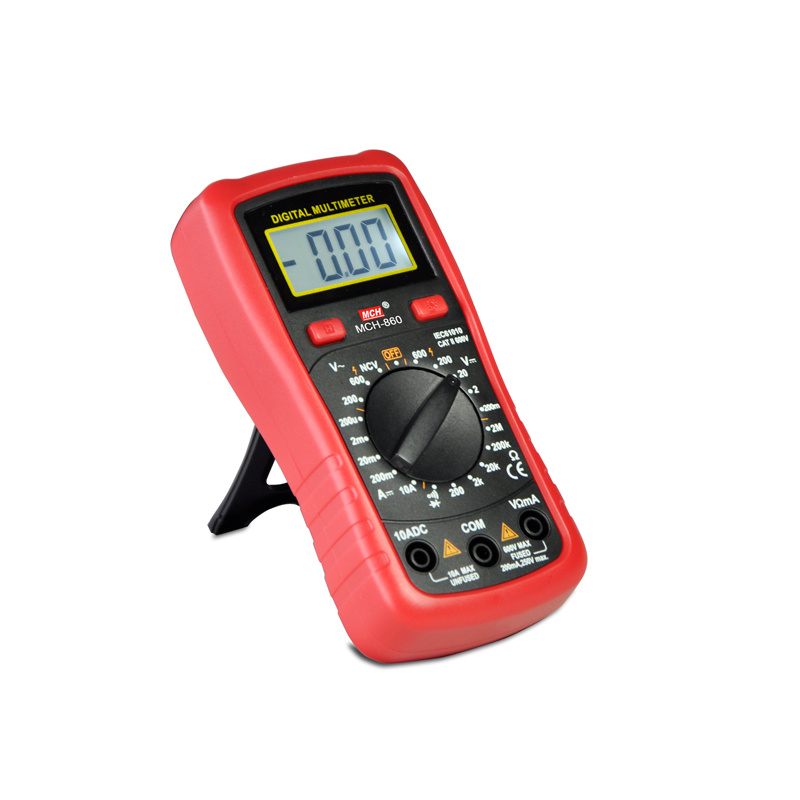

Digital Multimeter
MCH-860
Features:
Voltage between the input and maximum: CATII 600 v
Insurance tube: 200 ma F / 200 v
Maximum showed: 1999
The range scale: "1"
Polarity showed negative polarity show "-".
Working temperature: 0 to 40 º C
Storage temperature: - 10 º C to 50 º C.
Model
Specifications |
Range |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/600V |
±(0.5%+3) |
±(0.8%+3) |
|
AC Current |
200V/600V |
±(1.0%+3) |
±(1.0%+3) |
|
DC Current |
200μA/2mA/20mA/200mA/10A |
±(1.2%+5) |
±(0.8%+3) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ |
±(0.8%+3) |
|
Full symbol display |
|
√ |
|
Diode Testing |
|
√ |
|
Continuity Buzzer |
|
√ |
|
Low voltage display |
|
√ |
|
Keeping data |
|
√ |
|
Backlight Display |
|
√ |
|
Shock protection |
|
√ |
|
Maximum dispaly |
1999 |
√ |
|
Automatic shut |
|
√ |
|
Power Supply |
9V Battery(6F22) |
√ |
|
Measurement |
200×94×57mm |
|
Weight |
400g |
The company was found in 1995. After ten years of development, it has become strong not only in size, but also in production and R&D capability. Quality first, service utmost and economic pricing is our consistent commitment. We look forward to being your long-term partner.
We guarantee products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
1. MCH specializes in manufacturing up to hundred models of measuring instruments whole world since year 1996, such as analogue/digital Oscilloscope, arbitrary Function/Signal Generator, Spectrum Analyzer, Frequency Counter, Millivoltmeter, DC power supply, and etc.
2. All instruments will be attached necessary accessories and one year factory warranty.
3. We can produce large customized order according to customer requirement.
4. Since we are direct producer and seller, you can get fastest customer service.
5. We Promise you a profitable business and timely delivery.
