Product Specifications
| Prod Model: |
3G Wireless router |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Structure: |
Modular |
| Transfer Rate: |
150Mbps |
| Ports: |
≤4 |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Type: |
Wireless |
| Network: |
WCDMA /CDMA/Td-CDMA |
Product Description

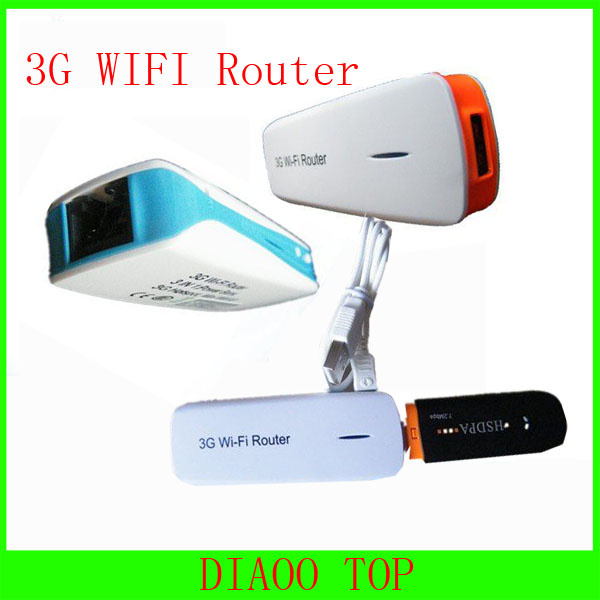

Multi-function Portable 3G Wireless Router Built-in WiFi+RJ45+3G
Main Features:
* 3in1: As a Portable mobile charger, 3G Hotspot & Mini AP
* Can connect via 3G USB Modem
* Can connect via iPhone
* Can connect via Cable/DHCP/ADSL Modem
* Can connect via WiFi Hotspot
* 1800mAh USB Power Bank
1. Built-in 1800 mAh rechargeable Li-polymer battery, supporting iPhone battery charge fully once, 3G Hotspot last up to 4 Hours, WiFi router last up to 10 hours (normal usage per full charge)
2, Supplies ower to electronic products(iPhone/iPod/iPad, Smart phone and MID) via USB under the status of ON or C.
3, With protection for over charge, over discharge, short-circuit to keep the charging process safely.
4, Battery indicator button, whatever it's on or off, learn how much battery power left.
Wi-Fi router, ADSL/DHCP ACCESS Automatic Recognition
1. Auttomatically recognize ADSL/DHCP and WAN/LAN without any preset profile.
2. The patented software, it could make wired broadband connection automatically, avoiding choosing WAN or LAN access by hand, automatic recognize ADSL/DHCP and display ADSL loge in interface.
3. Complies with IEEE802.11b/g/n standards and data speed rate up to 150Mbps.
Wi-Fi Hotspot Access And Relaying
5 Under the Wi-Fi coverage area, the users can relay the other Wi-Fi signal and share internet with unlimited users and data download.
6 Enlarge the Wi-Fi signal to make the Wi-Fi signal reach home everywhere, improving the internet range.
Surf Internet Via iPhone
Support iPhone version below ios 5.0 data package sharing, linked iPhone with R88, then share iphone's data package with your iPad, notebook. Easy sharing to avoid high battery-consumption of liphone when being hotspot by itself.
MULTIPLE POWER SUPPLY
Recharges its battery over power adaptor, Car charge or PC via USB cable.
|
WIFI |
Frequency Band:2412-2483MHz
802.11b/g/n:Up to 150Mbps
Data transmission:802.11b:1,2,55,11Mbps
802.11g:6,9,12,18,24,36,48,54Mbps
802.11n:150Mbps
Encryption:OPEN,SHARED,WEPAUTO,WPA-PSK,WPA2-PSK,WPA,
WPA2,WPA-PSK/WPA2-PSK,WPA/WPA2,802.1x
WPS:Supported
User amout:Max.20 WiFi users |
|
Gateway |
TCP/IP,UDP,DHCP Server, NAT/NAPT,UPnP,Static, Routing,MAC/URL/IP filter, VPN Passthrough |
|
External Interface |
1xMini USB For Power Charge
1xStandard USB 2.0 For Data Card/Charge
1xRJ 45 WAN(Support DHCP,ADSL,Static IP) or LAN |
|
Function Button |
1xPower Switch,1xReset,1xBattery Indicator Button |
|
Battery |
Capacity:1800mAh
Working time:up to 4 hours; Standby:up to 8 hours |
|
Dimensions |
95(L)X35(W)X14(H)mm |
|
Product Weight |
124g |
|
Environment |
Operating Temperature:-10 to +55 C
Operating Humidity: 10% to 80%
Storage Temperature: -20 to +60 C
Storage Humidity: 5% to 90% |
