Product Specifications

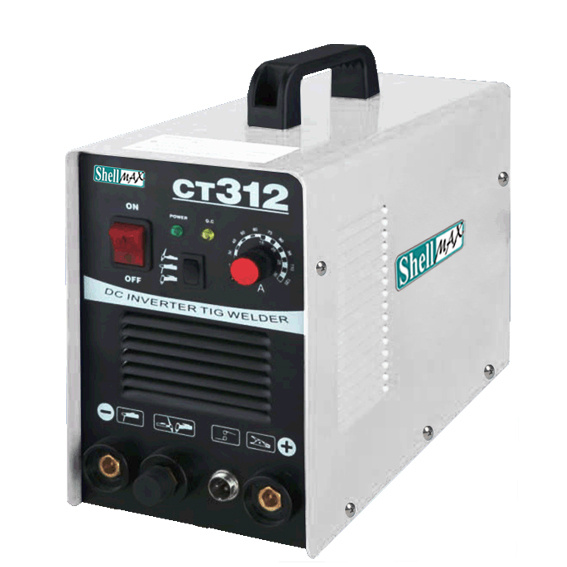

| Prod Model: |
CT312/416 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
ARC Welders |
| Current: |
Alternating Current |
Product Description
Features
Advanced double inverter technology
1. Multi-functions: TIG, MMA, PLASMA CUT.
2. Automatically identify and switch welding/cutting status.
3. The operation is simple and relibable. Economic and practical.
4. TIG: Good arc striking, stable current and focused arc, able to
Weld any metal materials.
MMA: Easy to strike arc and arc is stable.
5. Small size, light weight, Easy to install and convenient to carry.
6. Perfect circuit design, simple structure, good technics, safe and reliable.
| ITEM | CT-312 | CT-416 |
| Input Voltage | 1PH 230V | 1PH 230V |
| Frequency | 50/60Hz | 50/60Hz |
| Item | MMA | TIG | CUT | MMA | TIG | CUT |
| Rated Input Capacity | 3.4 | 2.3 | 3.5 | 4.9 | 3.3 | 4.9 |
| Power Factor | 0.93φ | 0.93φ |
| Efficiency | 0.85 | 0.85 |
| Max No-load Voltage | 60 | 60 | 240 | 65 | 65 | 260 |
| Current Range | 10-110A | 10-120A | 5-30A | 10-150A | 10-160A | 5-40A |
| Working Voltage | 24.4V | 14.8V | 92V | 26V | 16.4V | 96V |
| Rated Output Current | 110A | 120A | 30A | 150A | 160A | 40A |
| Rated Duty Cycle | 60% | 60% | 60% | 60% | 60% | 60% |
| Cutting Thickness | 1-8mm | 1-12mm |
| Insulation Class | F | F |
| Protection Class | IP21 | IP21 |
| Dimension | 43x21x36cm | 43x21x36cm |
| Weight | 11Kgs | 16Kgs |
