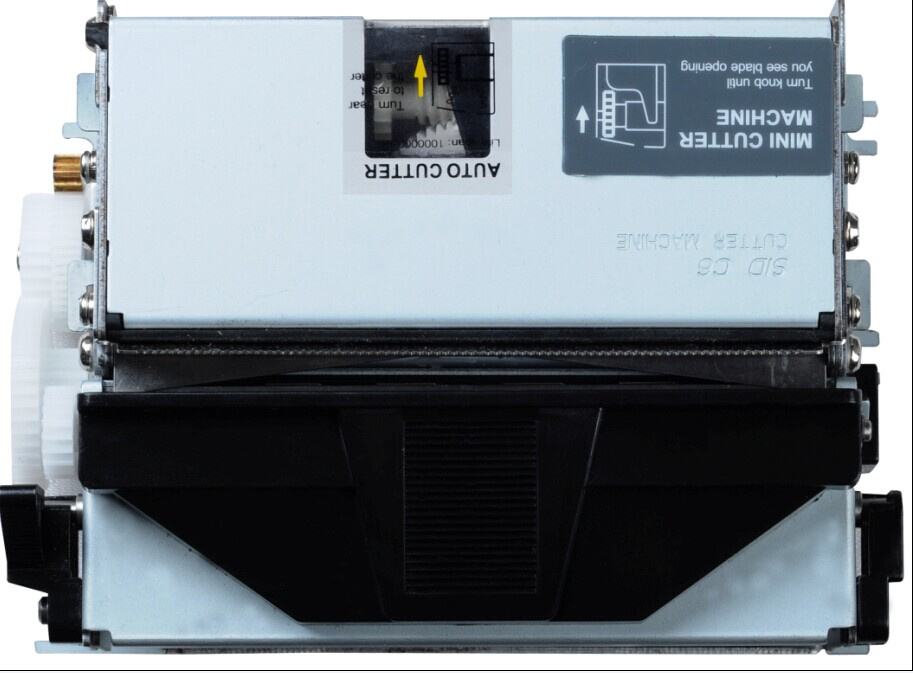

3 Inch Kiosk Embedded Printer for Self-Service Equipment

Name: 3 Inch Kiosk Embedded Printer for Self-Service Equipment
Brand: china-manufacturer-directory.com
SKU: 693507562
Availability: InStock
Rating: 4.6 (117 reviews)

Supplier:	Gainscha Auto Id Co., Ltd.
Price:	US $ 20-40/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	SID3250K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Kiosk Embedded Printer:	Thermal
Kiosk Printer:	3 Inch
Printer Mechanism:	Embedded

Product Description

3 inch kiosk embedded printer for self-service equipment SID3250K Paper width: 58mm,70mm,76mm,80mm,82.5mm max. Epson ESC/POS and Star commands compatible Speed: 250mm/sec Head life: 150km Cutter life: 1,500,000 Large paper roll capacity, up to 240mm diameter Highlight ·Open structure and easy maintenance design ·Easily handles thick paper and tickets up to 180um(7.1mils) ·Up to 250mm/sec high speed printing with low noise ·Two paper paths, straight and curved ·Large paper roll capacity, up to 254mm diameter ·Long-life auto cutter with choice of full or partial cut ·Easy semi-automatic paper loading ·Three available paper out methods: full cut, partial cut and tear off ·Support marked paper and continuous paper ·Two sensors in paper path so as to detect mark and paper more correctly ·RoHS compliant Using in thermal printers, POS ,kiosk,self-service terminals, ATM, Vending, retail ,medical machines, bank system, casino/gaming machines,ticketing and parking...

Model		SID3250K
Printing	Print method	Thermal dot line printing
	Dots per line	640dots
	Resolution	8 dots/mm
	Maximum print speed	250 mm/sec (9.85 inch/sec)
	Print width	80 mm
	Paper width	58, 70, 76, 80, 82.5 mm
	Paper feed pitch	0.125 mm
	Paper path	Curved/Straight
Detection	Head temperature detection	Via a thermistor
	Platen position detection	Via a mechanical switch
	Out-of-paper detection	Via a photo interrupter
	Black mark detection	Via a photo interrupter
	Cutter home position	Via a mechanical switch
Power supply(V)	Logic power supply(VDD)	5V
Power supply(V)	Heater print voltage(VH)	24V
Peak current(A)	Head	5.01A(26.4V / 128 dots)
	Motor	0.50A/phase
	Cutter	1.20A
Auto Cutter	Method	Slide type
	Paper thickness(mm)	0.054~0.120
	Cutting type	Partial cut(leave center point) or Full cut
	Operating time(sec/cycle)max	0.4
	Cutting pith(mm)min	10
	Cut frequency(cut/min)max	60
Service life	Pulse activation	100 million pulses or more
	Abrasion resistance(KM)	150 kmor more
	Life(cutter)	1,500,000
Operating temperature range (No condensation)		0°Cto 50°C
Storage temperature range (No condensation)		-20°Cto 60°C
Dimensions (excluding the lever and convex part) (width x depth x height)		100.1(W)X86.5(D)X57(H)mm
Mass		Approx. 583g

GAINSCHA established in 1999, is a professional manufacturer engaged in the research, development, production, sales and service of Mini Receipt Printer, Label printer and Thermal Printer Mechanism, We are located in Zhuhai, GuangDong with convenient transportation access.

With patent of GAINSCHA trademark, GPRINTER and SID brand, Patent of product design, we have won NO. 1 sales performance in China market for continuous 5years. All products are RoHS compliant and CCC, CE and FCC certified, exported to Europe, US, Canada, South America, Africa, Asia, HongKong, Taiwan and etc.

We welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for our applicaton, you can talk to our experienced staff about your sourcing requirments.

With cutting dedge Technologh, Proven R&D Capabilities, Wuality Manufacturing Facilities and Industry Product Knowledge, GPRINTER printers has became a leading brand throughout China and became the largest OEM&ODM manufacturer with growing GPRINTER brand reaching to the rest of the world.
