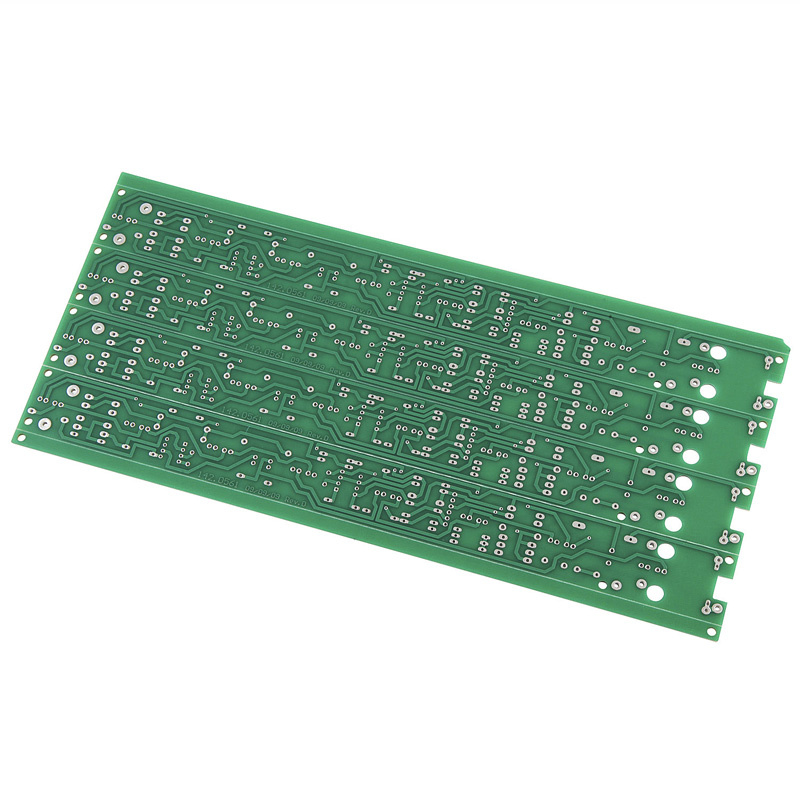

??Model No.:??????????????????????KG-M4-016
? Number of Layers:??????? 4L
? Base-Material:?????????????? ?FR4
? Thickness:???????????????????????1.6mm+/-10%
? Final-Cu:???????????????????????? ?3/3oz?
? Impedance:????????????????????No
? Blind and buried via:????No
? Min. Drill hole:?????????????? 0.45mm
? Min. Line space:????????????0.25mm
? Min. Line width:??????????? 0.25mm
? Mech. Treatment:???????? Routing?
? Surface Treatment:??????HASL
??Solder-Mask:?????????????????Green?
?Legend-Print:??????????????????White
?100% E-Test:???????????????? ? Yes
Item |
Mass production |
Small batch production |
Number of Layers |
UP TO 16L |
UP TO 30L |
Laminate |
FR-4, Halogen free, High TG, Cem-3, PTFE, Aluminum BT, Rogers |
Maximum board size |
610*460mm |
762*508 |
Board thickness |
0.3-3.5mm |
0.21-6.0mm |
Minimum line width/space |
0.1/0.1mm |
0.076/0.076mm |
Minimum line gap |
+/-15% |
+/-10% |
Outer layer copper thickness |
140um |
245um |
Inner layer copper thickness |
70um |
245um |
Min.finished hole size(Mechanical) |
0.2mm |
0.15mm |
Min.finished hole size (laser hole) |
0.1mm |
0.1mm |
Aspect ratio |
10:01 |
20:01 |
Solder Mask Color |
Green\Blue\Black\White\Yellow\Red\Grey |
Impedance control Tolerance |
<=+/-10% |
Surface Treatment |
Flash Gold |
0.025-0.075um |
0.025-0.5um |
Immersion Gold |
0.05-0.1um |
0.1-0.2um |
Sn/Pb Hasl |
1-70um |
Leadfree Hasl |
1-70um |
Immersion Silver |
0.08-0.3um |
OSP(Entek) |
0.2-0.4um |
Gold Finger |
0.375um
>=1.75um |
|
Hard Gold Plating |
0.375um
>=1.75um |
|
Immsion Sn |
0.8um
|
|
V-Cut |
|
V-Cut degree |
20,30,45,60 |
Outline Profile |
Chamfer |
The angle type of the chamfer |
30,45,60 |
Plug via hole |
Max.size can be plugged |
0.6mm |
0.7mm |
Largest NPTH hole size |
6.5mm |
>6.5mm |
Largest PTH hole size |
6.5mm |
>6.5mm |
Min.annular ring can be kept |
0.15mm |
0.1mm |
Min.distance between the IC pads can keep Sm bridge |
0.25mm |
0.18mm |
Min.SM bridge for green soldermask |
0.1mm |
0.076mm |
Min.SM bridge for black soldermask |
0.125mm |
0.1mm |
Tolerance of dimension size |
<=+/-0.13mm |
+/-0.1mm |
Tolerance of board thickness |
>=1.0mm +/-10% |
+/-8% |
<1.0mm +/-0.1mm |
Tolerance of finished NPTH hole size |
+/-0.05mm |
+/-0.05mm |
Tolerance of finished PTH hole size |
+/-0.076mm |
+/-0.05mm |
Delivery time |
Mass:10~12d |
Sample:5~7D |
Capacity |
60000sq/m |
CAM capability |
20 Items |
100-180Items |
Kaige Group Co., Ltd was one of the world-leading printed circuit board service enterprise, which have two factories (one located in fujian China, the other located in Chongqing China), one European office (located in Madrid Spain) and one USA office.
Through the years we have made great effort into making constant progress, now KAIGE runs the first modern PCB production line together with professional and experienced employees and strong management team (management team from Red Board company), which insures our monthly throughput reaches to 60000M2 and the qualified supplier of Flextronics & Jabil. It is specialized in manufacturing double sides and multilayer printed circuit boards, and main products are for industry based in the Meter PCB/Solar Energy PCB/ Medical Device PCB, and we provides a "PCB One-stop Shop" service to meet customers' diverse demands.
The vision of KAIGE is "To be the top PCB enterprise and create maximum value for our clients, employees, society and shareholders". The core values of KAIGE are "Integrity, Cooperation, Progress, Sharing, Customer-centric and Market-oriented".
With good vision and core values, Kaige Group Co., Ltd will fulfill its great mission of "To provide high-quality PCB and prompt satisfactory service for worldwide electronic information industry"
