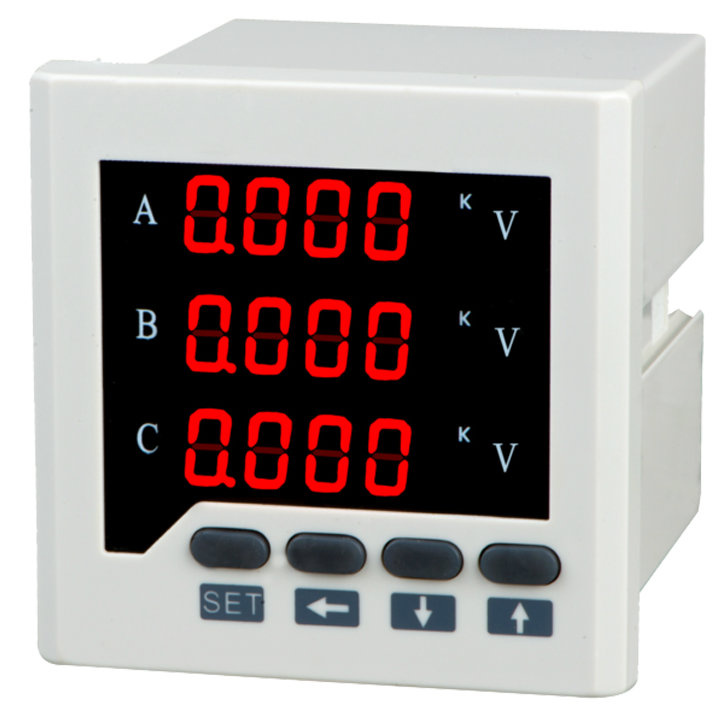

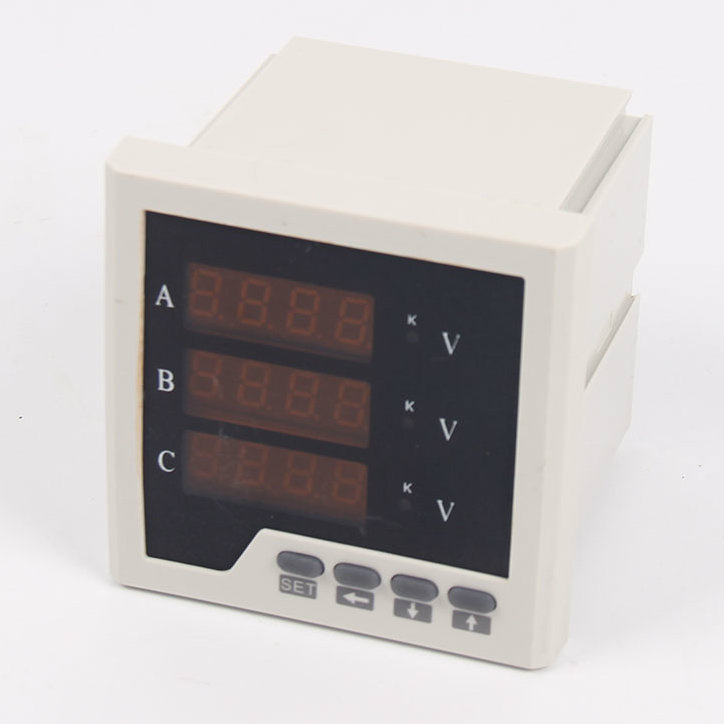

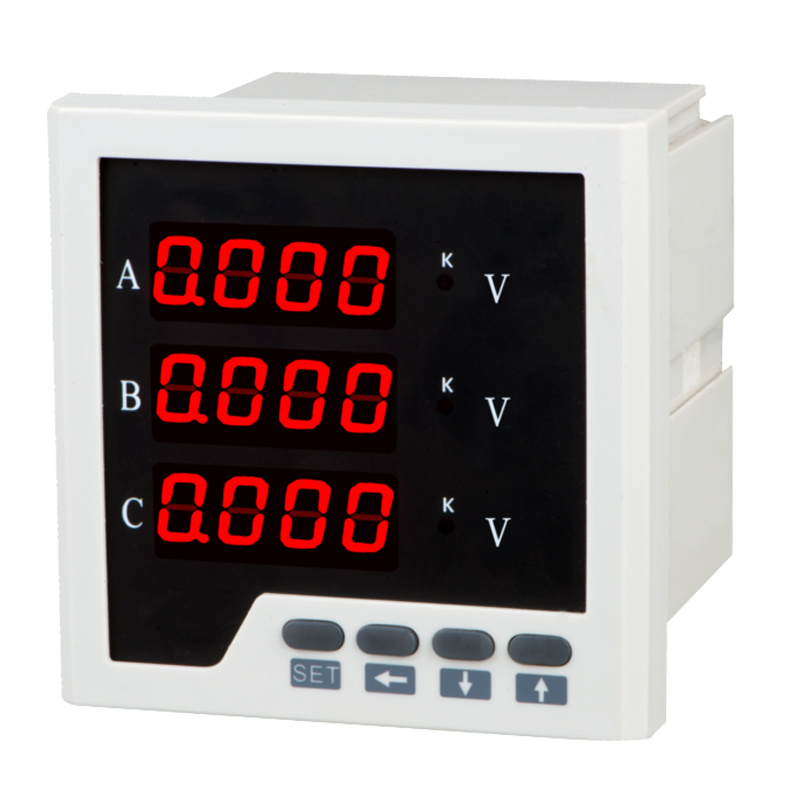

3 Phase Electric Digital Voltage Meter with Analog Output

9.3 RS 485 communication
  9.3.1 Communication protocol
      9.3.1.1 RS485 communication interface, asynchronous half-duplex mode.
      9.3.1.2 Communication baud rate 4800, 9600bps which can be set. Factory default value is 9600bps.
      9.3.1.3 Data format: N81 no parity bit, 8 data bits, 1 stop bit.
RS485 interface; Connection type: asynchronous half-duplex; International standard Mod bus RTU protocol, instrument address: 1 ~ 247, what is more, it supports 03H read command currently.
Message format:
Command 3 H: read command
Master requests: address + Command + data address + data length + CRC check code
               1byte + 1byte + 2byte+ 2byte + 2byte
Address: in order to query the address code, set within 1 ~ 247 and it takes up one byte
Command: 3 H read command, length is 1 byte
Data address: read data source address, and it takes up 2 bytes
Data length: read data bytes length
CRC16 check code: low 8 bits in front, high 8 bits in the back, and it takes up 2 bytes
Slaver requests: address + Command + data length + data information + CRC check code Address: in order to response the address code and it takes up one byte
Command: 3 H read command, length is 1 byte
Data length: data bytes length which is to send
Data information: read data, see the meter parameter address table if you want to know specifics
CRC16 check code: low 8 bits in front, high 8 bits in the back, and it takes up 2 bytes
               1byte + 1byte + 1byte+ n byte + 2byte
9.2 Analog transmitting output
Analog transmitting output option: DC4~20mA. Analog transmitting output is linear with input signal isolation, and it is widely applied to PLC, DCS etc collection.
Precision 0.5 grade, load resistance<500Ω while current input, load resistance>100Ω while voltage input.
