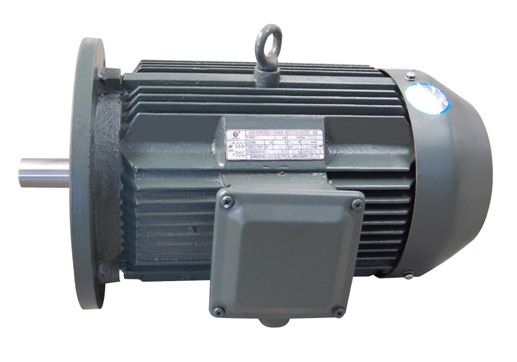

3 Phase Ie2 High Efficiency Induction Motor with CE Approved

Name: 3 Phase Ie2 High Efficiency Induction Motor with CE Approved
Brand: china-manufacturer-directory.com
SKU: 695656255
Availability: InStock
Rating: 5 (89 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Feature: Induction motor is with outstanding performance, such as High efficiency, energy-saving, High starting torque, low noise, little vibration, reliablw operation, easy maintance, etc.
Usable range: Y2 series motors are widely used in places where not exists combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.

Frame sizes: 63-315 2) Rated power: 0.12-200kw
Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54,IP56
Insulation class: B,F,H
Materials: Cast iron, aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1, IE1,IE2,IE3
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C

The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to

Inner packing:
Frame 63-112: Foam boxes
Frame 132-315: Wooden boxes

Quick Details

Brand Name: XIAOLAODA&KAPTEENI
Model Number: YE2/YE3/NEMA/Y2/Y/YL/YC/YY/MY/MY/ML/MS
Type: ac motor
Frequency: 50Hz or 60Hz
Output Power: 0.09kw to 75kw
Protect Feature: Totally Enclosed/OPEN
Phase: Three-phase/Single phase
Certification: CCC, CE, ROHS,ISO9001
AC Voltage: 110V,220V,380V,415V,660V
Place of Origin: Taizhou, China (Mainland)
Efficiency: IE3/IE2/EFF1/EFF2
Insulation class: Class B, F,H
Protection grade:IP22,IP44, IP55
Duty: S1,S2,S3
Mounting: B3,B14,B5,B35,B34 etc
Cooling: ICO141
Bearings: C&U,SKF,NTN,NSK Products:Motors,also Pumps

Packaging Details:	Cartons, Wooden crates, Pallets
Delivery Detail:	10-30days

Electric Motors with CE

Features:

1) Utilizes IP55 enclosures
2) Multiple feet locations
3)Cast iron, Aluminum frame, end shields and base
4) High strength cable gland
5) Shaft key and protector supplied
6) Superior paint finish
7) Motors are made to heavy duty service factors
8) Can be made with stainless steel shaft
9) Motors made for continuous S1duty,also ok with S2.S3 duty.
10) Utilizes vacuum impregnated Class F/H insulation
11) High performance and efficiency

Advantages:

1) Water, dust and vermin resistant
2) Quiet operation
3) Electricity saving
4) Easy installation (bolt on feet or brackets as required)
5) Corrosion resistant
6) Dependable
7) Superior life
8) Reliable in country, city or factory environments

Enclosure:	IP22/IP44/IP54/IP55
Insulation:	Class B, F,H
Working Duty:	S1,S2,S3

WHY CHOOSE US

WHAT WE DO INSIDE HUAMING COMPANY

Stamping of lamination
Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing one by one
100% test after each process and final test before packing.

WHAT HUAMING CAN DO FOR CUSTOMERS

We supply standard products to customers.
We supply standard products under customers' brands and packaging, etc
We have our own R&D departmen cant develop new products according to customers'requirements.

OUR FACTORY CAPABILITY

Established:1985
Total : workshop, laboratory and office all building belongs to ourselves.
Employees: All with more than 8 years experience,and some with more than 30years.experience.
Engineers: 5 work in R&D and 6 in factory production
Main market: Europe,Australia,South&North America,Africa,Asia,Latin..
Production certification: Motors has been certificated according to ISO9001, TUV, CE, CCC,Our products are made according to RoHS and IEC standard,NEMA standard..

Mounting details:

Schematic diagram
mounting type	B3	B35	B5	V1
mounting Discribtion	frame with feet,end-shield without flange	frame with feet,end-shield with flange	frame without feet,end-shield with flange	frame without feet,end-shield with flange
Suitable frame	H63-315	H63-315	H63-280	H63-315

Farame size	Mounting Dimensions(mm)															Overall Dimension(mm)
Farame size	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AD	HD	HF	L
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	165	175	150	175	185	290
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	195	160	195	195	315
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	195	160	195	195	340
100L	160	140	70	28	60	8	24	100	12	215	180	250	0	15	4.0	205	215	180	245	245	380
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	240	190	265	265	400
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	275	210	315	315	475
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	275	210	315	315	515
160M	254	210	108	42	110	12	37	160	15	300	250	350	0	19	5.0	325	325	255	385	385	605
160L	254	254	108	42	110	12	37	160	15	300	250	350	0	19	5.0	325	325	255	385	385	650
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	0	19	5.0	355	360	285	430	430	670
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	0	19	5.0	355	360	285	430	430	710
200L	318	305	133	55	110	16	49	200	19	350	300	400	0	19	5.0	395	400	310	475	475	770

Bearing type-table


	Horizontal		vertical
motor frame	DE side	N-DE side	DE side	N-DE side
63	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2
71	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2
80	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2
90	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2
100	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
112	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
132	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2
160	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2
180	6211/Z2	6211/Z2	6211/Z2	6211/Z2
200	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(2P)	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(4-8P)	6313/Z2	6212/Z2	6313/Z2	6312/Z2
250(2P)	6313/Z2/Z2	6313/Z1	6313/Z2	6313/Z1
250(4-8P)	6314/Z1	6213/Z1	6314/Z1	6313/Z1
280(2P)	6314/Z1	6313/Z1	6314/Z1	6313/Z1
280(4P)	6317/Z1	6313/Z1	6317/Z1	6313/Z1
315(2P)	6317/Z1	6317/Z1	6317/Z1	6317/Z1
315(4-8P)	NU319	6319/Z1	NU319	6319/Z1

Prod Model:	IE2-180M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Volt: 220/380V\380/660V:	Cooling Type: Ico141
Related Frequency: 50Hz(60Hz):	Operation Type: S1
Protection: IP44\IP55\IP56:	Insulation Class: B\F\H
Flange Mount Motor:	B3 B5
B14:	B35 B34
Ie2 Motor:	Heavy Duty Motor
Application:	Car
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Brand:	Kapteeni

Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.

The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.

Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.

Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
