3-Phase Nanocrystalline Core for Common Mode Choke, Initial Permeability Ui 60000 Min

Name: 3-Phase Nanocrystalline Core for Common Mode Choke, Initial Permeability Ui 60000 Min
Brand: China-Manufacturer-Directory.com
SKU: 695274552
Availability: InStock
Rating: 4.8 (46 reviews)

Supplier:	Zhuhai King Magnetics Technology Co., Ltd.
Price:	US $ 18/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	N65x40x30
Markets:	North America,South America,Eastern Europe,Eastern Asia,Western Europe
Type:	Choke Inductor
Structure:	Inductive Choke
Structure Of Winding:	Common Mode Choke
Structure Of Magnetizer:	Nanocrystalline Core
Brand:	King Magnetics
Packaging Form:	Core

Product Description

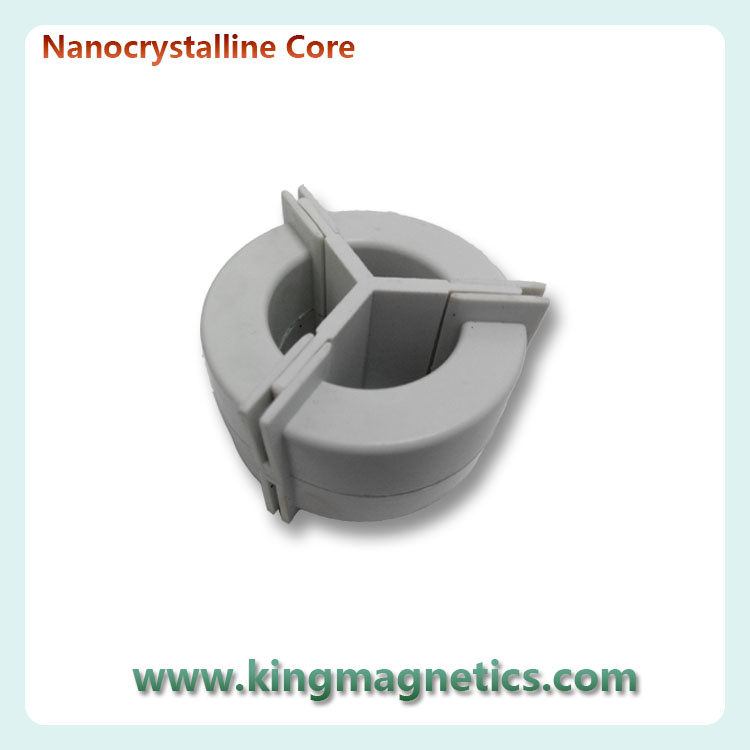

High inductance Nanocrystalline EMC Filter Common Mode Choke core

N65x40x30

3- Phase disign, with seperated board, Nanocrystalline core

(sometimes they call amorphous core)

Features:

High permeability Nanocrystalline Core ui 60000 Min @ 10Khz

Used best nanocrystalline ultra thin ribbon of 25um

Best high frequency characterics

For EMI Filter and Common Mode Choke

Bare core dimensions: OD: 65mm ID: 40mm HT: 30mm

Finished core dimensions (approximately): OD: 55.6mm ID: 32.6mm HT: 28.6mm

AL Value @ 10KHz, 0.25V: 115uH Min

You can also specified other AL value, we can custom made.

Working temperature: -40 - 120 Centidegree

RoHS Compliance, UL94-V0 for plastic case.

It is the best core for EMI solusions.

Please visit: www.kingmagnetics.com

KingMagnetics

King Magnetics is proffesional designer and producer of nanocrystalline and amorphous cores and Components.

We are one of leader of the nanocrystalline and amorphous cores in the world. Our products features high performance, high stablility and reliable.

We have researched, produced and sales high quality amorphous and nanocrystalline materials for over ten years, and we have a lot of experience of designing amorphous and nanocrystalline cores and components. Our products are widely used overworld in all kinds of electronics and electrical area.
