Product Specifications
| Prod Model: |
ARM1-465 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Arm1-465/265 |
| Supply Terminals: |
A1-A2 |
| Voltage Range: |
DC 12V- AC240V |
| Function: |

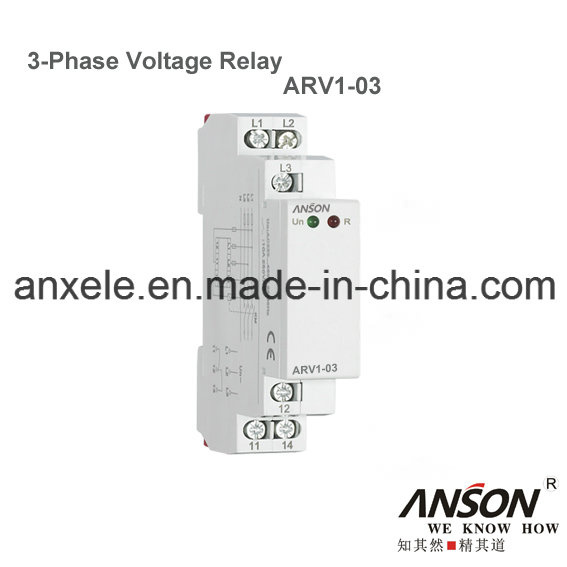

Monitoring 3-Phase Voltage |
| Burden: |
AC 0.7-3va/DC 0.5-1.7W |
| Time Delay: |
Adjustable 0.1s-10s, 10% |
| Frequency: |
50-60Hz |
Product Description
General
Applications
-Control for connection of moving equipment(site equipment, agricultural
equipent, refrigerated trucks).
-Control for protection of persons and equipment against the consequences
of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load (phase failure).
Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range: 45Hz-65Hz.
- Voltage measurement accuracy<1 %.
- Relay status is indicated by LED.
- 1 -MODULE, DI N rail mounting
Table
| Function code | Over-voltage | Under-voltage | Asymmetry | Delay time | Phase sequence | Phase failure |
| 03 |
|
|
|
| l | l |
| 04 | 2%......20% | -20%.....2% |
| 0.1s.10s | l | l |
| 05 | 2%......20% | -20%.....2% | 8% | 0.1s.10s | l | l |
| 06 | 2%......20% | -20%.....2% | 5%.....15% | 2s | l | l |
| 07 |
|
| 8% | 2s | l | l |
| 08 | 15% | -15% | 8% | 2s | l | l |
Note:？the function is available
Technical parameters
| Technical parameters | M460 | M265 |
| Function | Monitoring 3-phase voltage |
| Monitoring terminals | L1-L2-L3 | L1-L2-L3-N |
| Supply terminals | L1-L2 | L1-N |
| Rated supply voltage | 220-230-240-380-400-415-440-460(P-P) | 127-132-138-220-230-240-254-265(P-N) |
| Rated supply frequency | 45Hz-65Hz,0 |
| Measuring range | 176-552V | 101V-318V |
| Threshold adjustment voltage | 2%-20% of Un selected |
| Adjustment of asymmetry threshold | 5%-15% |
| Hysteresis | 2% |
| Supply indication | green LED |
| Time delay | Adjustable 0.1s-10s,10% |
| Measurement error | ≤1% |
| Run up delay at power up | 0.5s time delay |
| Knob setting accuracy | 1% of scale value |
| Reset time | 1000ms |
| Temperature coincident | 0.05%/ºC,at=20ºC(0.05%ºF,at=68ºF) |
| Output | 1 × SPDT |
| Current rating | 10A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min. breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1× 10 |
| Electrical life(AC1 ) | 1× 10 |
