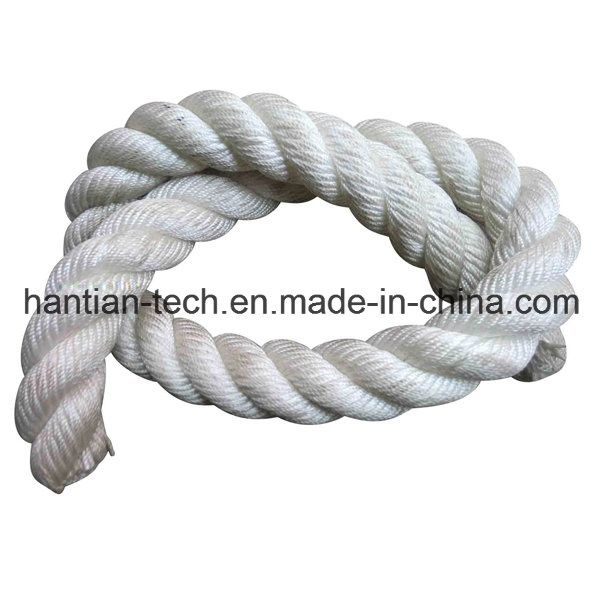

3-Strand Polypropylene Multifilament Marine Rope for Fishing or Packing and Used on Vessel (C3)
Product Specifications
| Prod Model: |
C3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Marine Rope Certificate: |
CCS, Lr, Gl, ABS, Dnv, BV and Nk |
| Marine Rope Application: |
Line/Anchor Line/Towing/Commerical Fishing |
| Color: |
Withe, Black, and Other Color |
Product Description
CHNLINE 3-Marine Rope is the most economical rope available on the market. Itconsists of many tiny fibers spum into yarns, and then formed into strands. 3-stand ropes are flexible,many tiny fibers spum into yarns, and then formed into strands. 3-stand ropes are flexible, easily spliced and knotted. CHNLINE fibers can include polyamide multifilament, polyester, polypropylene monofilament and polypropylene multifilament, etc, and come in a hard medium(standard) and soft lay.
CHNLINE 3-strand Polypropylene Marine Rope is a kind of low cost general purpose rope that floats and does not absorb water.
It has low friction coefficient & good resistance to abrasion as well as sunlight and cyclic loading in wet and dry environmen.
Specific Gravity: 0.91 (floating, zero absorption)
Working Temperature: 80ºC
Melting Point:185ºC
U.V. Resistance: Good
Chemical Resistance: Excellent
Abrasion Resistance: Good
Modifications: Eye splice at one or both ends (Thimble as your required)
CHNLINE 3-strand Nylon Marine Rope
consisted of 100% polyamide fiber,
The polyamide rope has excellent Elongation,
High Strength and better shock absorption property.
Specific Gravity: 1.14 (not floating)
Working Temperature: 100ºC
Melting Point:215ºC
Elongation at Breaking: 25-30%
U.V. Resistance: Excellent
Chemical Resistance: Good (will dissolve in H2SO4).
Modifications: Eye splice at one or both ends (Thimble as your required)
3 ply polyester Marine Rope
Material: polyester fiber
Size: From 4mm-56mm.
Structure: twisted rope
Package: 200m, 220m/coil
Halyards Control Lines Sailmakers' Bolt Rope General purpose rope.
CHNLINE 3-strand Polypropylene Multifilament Rope floats on water as it is lightest among synthetic fiber ropes.
It is easy to handle as it is smooth and flexible by manufacturing the rope with fiber that are microscopically thin at 0.05mm using the latest precision extruding technologies.
Specific Gravity: 0.91 (floating)
Working Temperature: 80ºC
Melting Point: 165ºC
U.V. Resistance: Excellent
Chemical Resistance: Excellent
Abrasion Resistance: Excellent
Modifications: Eye splice at one or both ends (Thimble as your required)| Specification | PA Multifilament | Polyester | Polypropylene | PET/PP Mixed |
| Dia | Cir | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN |
| 4 | 1/ 2 | 9.87 | 3.75 | 12.1 | 2.8 | 7.23 | 2.8 | 7 | 2.8 |
| 6 | 3/4 | 22.2 | 8 | 27.3 | 6 | 16.3 | 5.4 | 17.5 | 6.8 |
| 8 | 1 | 39.5 | 14 | 48.5 | 10.6 | 28.9 | 10 | 31 | 11.9 |
| 10 | 1-1/4 | 61.7 | 21.2 | 75.8 | 16 | 45.2 | 15 | 48.5 | 18.2 |
| 12 | 1-1/2 | 88.8 | 30 | 109 | 22.4 | 65.1 | 21.2 | 69.9 | 25.7 |
| 14 | 1-3/4 | 121 | 40 | 149 | 30 | 88.6 | 28 | 95.1 | 34.7 |
| 16 | 2 | 158 | 50 | 194 | 40 | 116 | 37.5 | 124 | 44.8 |
| 18 | 2-1/4 | 200 | 63 | 246 | 50 | 146 | 45 | 157 | 56.1 |
| 20 | 2-1/2 | 247 | 80 | 303 | 60 | 181 | 56 | 194 | 68.7 |
| 22 | 2-3/4 | 299 | 95 | 367 | 71 | 219 | 67 | 235 | 82.1 |
| 24 | 3 | 355 | 112 | 437 | 85 | 260 | 80 | 279 | 96.3 |
| 26 | 3-1/4 | 417 | 125 | 512 | 100 | 306 | 90 | 328 | 113 |
| 28 | 3-1/2 | 484 | 150 | 594 | 118 | 354 | 106 | 380 | 130 |
| 30 | 3-3/4 | 555 | 170 | 682 | 132 | 407 | 118 | 437 | 148 |
| 32 | 4 | 632 | 190 | 776 | 150 | 463 | 132 | 497 | 167 |
| 36 | 4-1/2 | 800 | 236 | 982 | 190 | 586 | 170 | 629 | 210 |
| 40 | 5 | 987 | 300 | 1210 | 236 | 723 | 200 | 776 | 257 |
| 44 | 5-1/2 | 1190 | 355 | 1470 | 280 | 875 | 250 | 939 | 308 |
| 48 | 6 | 1420 | 400 | 1750 | 335 | 1040 | 280 | 1110 | 364 |
| 52 | 6-1/2 | 1670 | 475 | 2050 | 375 | 1220 | 335 | 1320 | 424 |
| 56 | 7 | 1930 | 560 | 2380 | 425 | 1420 | 375 | 1520 | 489 |
Ningbo Hantian Technology Co., Ltd.Is professional manufacturer and exporter, importer of supplying all kinds of rubber parts and lifesaving parts of ship, and other related ship equipment.We make sourcing for customers, with cooperated with many long history factories in China.We manufacture all sorts of spare parts againest rubber material like rubber airbag, ship fender;Glass reinforced plastic material like life boat, rescue boat, hardware parts like shackles, chains, valves, flashlight and headlamps.Besides, we offer firefighting parts, emergency protective clothes, and other small parts relative to sea area.
Some of our suppliers have long history here, with years of developing;They already become leading manufacturers & supplier of related spare parts in marine time industry.
Ningbo Hantian Technology Co., Ltd.Have been improving its technical capability in line with the requirements of ongoing projects and those for which the company is up for.
There have been workshop, testing/measurement system and equipment investments for the material application and control, force analyzing fields, computer aid design and field application.
Our products almost have obtained approval certifcate of CCS, ABS, NK, BV, DNV.
We specially assigned staff keeps a close dynamic follow-up on our end user and acquires their feedback in time.
Our technical team consiss of dozen of well-experienced professional staff, including senior expert & consultant at ship re-conditioning.
Our professional technicians will provide you a comprehensive technology support all the year.
