Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

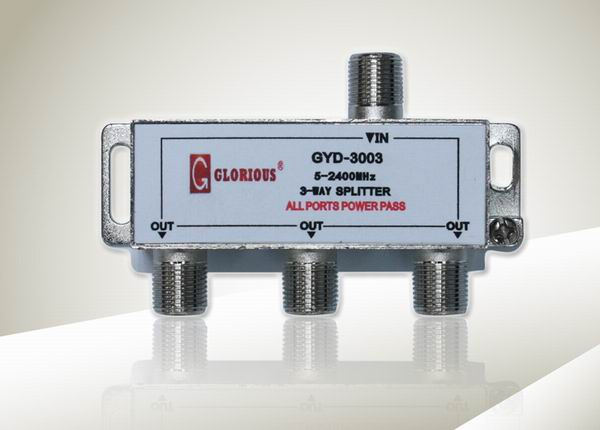

Description of the splitter:
Zinc die-cast housing, nickle-plated
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
The splitter is designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
|
|
Model |
2-way splitter |
3-way splitter |
4-way splitter |
6-way splitter |
8-way splitter |
|
Item |
Frequency |
Typical |
Typical |
Typical |
Typical |
Typical |
|
INSERTION LOSS (IN-OUT) (dB) |
5-40MHz |
≤ 4.0 |
≤ 7.0 |
≤ 8.0 |
≤ 11.5 |
≤ 12.0 |
|
40-1000MHz |
≤ 4.5 |
≤ 7.5 |
≤ 8.5 |
≤ 12.0 |
≤ 12.5 |
|
1000-1750MHz |
≤ 5.0 |
≤ 9.5 |
≤ 10.0 |
≤ 13.5 |
≤ 14.5 |
|
1750-2400MHz |
≤ 6.0 |
≤ 11.2 |
≤ 11.5 |
≤ 16.5 |
≤ 17.0 |
|
ISOLATION LOSS (OUT-OUT) (dB) |
5-40MHz |
≥ 20.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
≥ 25.0 |
|
40-1000MHz |
≥ 24.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
≥ 25.0 |
|
1000-1750MHz |
≥ 24.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
|
1750-2400MHz |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
≥ 22.0 |
|
RETURN LOSS (IN. OUT) (dB) |
5-40MHz |
≥ 10.0 |
≥ 9.0 |
≥ 11.0 |
≥ 10.0 |
≥ 10.0 |
|
40-1000MHz |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
|
1000-1750MHz |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
|
1750-2400MHz |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
≥ 12.0 |
