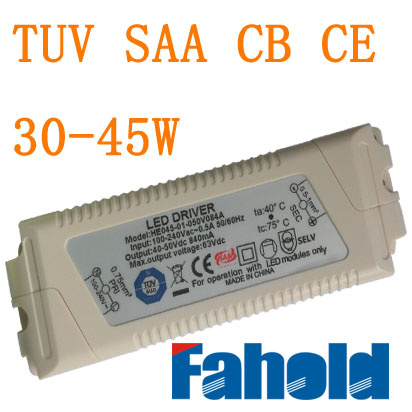

30~36W External LED Power Supply for LED Ceiling Light

Name: 30~36W External LED Power Supply for LED Ceiling Light
Brand: china-manufacturer-directory.com
SKU: 755302145
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 5.5-6.2/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	10/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

LED driver ,30-36W ,high quality capacitor and control IC, proved by TUV SAA CE CB,Be used for LED panel light,LED ceiling light,LED down light et. We are a professional LED driver manufacturer with 2000 square meters workshop. 5 years warranty.
Features:
1.White plastic case

2.Protection function:SCP/OTP/OVP
3. 5 years' warranty.
Specifications:

Output	DC output	32V~58VDC
	Current range	220~1300mA
	Rated power	30~45W
	Ripple&Noise	250mV
	Current regulation	±3%
	Starting time	2000mS/230Vac, 3000mS/115Vac
Input	Voltage range	90Vac-264Vac
	Frequency range	47Hz-63Hz
	Power factor	PF>0.94
	Efficiency	83%typ @100Vac, 85%typ @220Vac
	Inrush current	(Cold start)<75A@240Vac
	Leakage current	0.25mAmax @ 230Vac
Protection	Short circuit	Output short circuit protection
	Short circuit	Protection:Auto recovery after the fault removed
	Over voltage	Protection mode:Limit highest voltage, recovery after the fault removed.
	Over temperature	105°C±5 °C ( Internal radiator's temperature)
	Over temperature	Protection mode:Closed Output voltage,recovery after temperature automatic recovery.
Environment	Operating temperature	-10°C~+50°C
Safety&EMC	Safety	CE EN 61347-1, EN61347-2-13 SAA AS/NZS IEC 61347.2.13:2013 AS/NZS 61347.1:2002
	HI-POT	I/P-O/P: 1K5Vac
	Insulation resistance	I/P-O/P: 100M Ohms/500Vdc
	EMI
	Harmonic current	IEC 61347.2.13:2013 Class C compliant
Others	Dimension	130mm43mm30mm(LWH)
Others	Net weight	170g

Prod Model:	HE045-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1324530mm
Net Weight:	170g
Usage:	LED Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Fahold
Pack Sealing Size:	Plastic Case
Certification:	SAA, CB

Shenzhen Fahold Electronics Co., Ltd. Locates in the LED industry collection and distribution center, Shiyan Town, Shenzhen City. With a workshop of 1, 500 square meters, it is a professional, technical and standardized enterprise focusing on research and development, production and sale. The main products of the company are LED drivers.

All our key raw material comes from famous suppliers who have the international certifications, our products have a higher quality assurance. All our products have been certified by CE/FCC/RoHS/SAA/TUV/CB etc., and are exported to all over the world, such as North America, Europe, Australia, Japan and South Korea.

Our company has many senior engineers with doctorate more than 10 years power development experience, and it can design products according to customers' requirements. Besides, our company has technical support from professional engineers, so it can provide excellent technical help for the users lacking of related experience.

PRODUCT LINES:

1. External LED Drivers

2. Dimmable LED Drivers
