Andeli Group Co., Ltd. >> 30 AMP Timer Switch Electronic Twin Timer (AH2, ATDV)

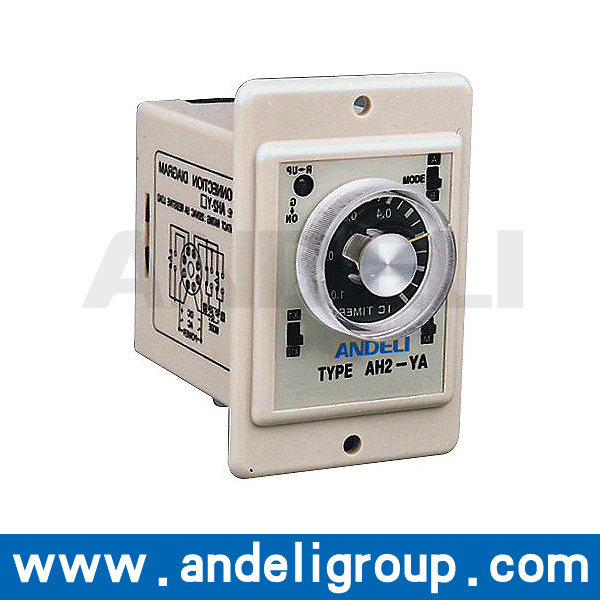

30 AMP Timer Switch Electronic Twin Timer (AH2, ATDV)

Name: 30 AMP Timer Switch Electronic Twin Timer (AH2, ATDV)
Brand: china-manufacturer-directory.com
SKU: 690321505
Availability: InStock
Rating: 4.6 (27 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,others

Product Specifications

Prod Model:	AH2, ATDV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification Model:	Ah2-N/Y Atdv-N Atdv-Y
Reset Time:	0.1 Sec Max 0.2 Sec Max 0.2 Sec Max
Theory:	Mechanical
Usage:	Industrial
Type:	Timer
Function:	Addition Counter
Carry Mode:	Synchronous Counter
Carry Base:	Module-n Synchronous Counter
Mechanism:	Mechanical

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Specification Model: AH2-N/Y ATDV-N ATDV-Y
Reset Time: 0.1 sec max 0.2 sec max 0.2 sec max
Consumed Power: 3VA
Ambient temperature: -10oC~+55oC

Classification			Multi Range Timer	Twin Timer	Twin Timer
Specification Model			AH2-N/Y	ATDV-N	ATDV-Y
Dimension			61H×49W×70D 88H×58W×68D	61H×49W×70D	88H×58W×68D
Mounting & Socket		Surface(-N)	PF083A PS-08	P2CF-08 PS-08	PF083A
Mounting & Socket		Flush(-Y)	US-08 P3G-08	PF083A	US-08 P3G-08
Full Timing Range			A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H	6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request	6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)			AC: 12,24,110,220, 240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			ON-UP Two Indicator Lamp	ON,OFF Operating	ON,OFF Operating
O/P Contact	Model		AH2-N-/AH2-Y-	ATDV-N	ATDV-Y
	Time Limit 1C		5A	5A	5A
	Time Limit 2C
	Instantaneous 1C		5A
Life	Mechanical		5×106 Times	5×106 Times	5×106 Times
Life	Electrical		105 Times	105 Times	105 Times
Accuracy	Repeat Error		±1% max	±1% max	±2% max
	Setting Error		±10% max	±10% max	±20% max
	Voltage Error		±1% max	±1% max	±1% max
	Temp Error		±2% max	±2% max	±2% max
Reset Time			0.1 sec max	0.2 sec max	0.2 sec max
Consumed Power			3VA	3VA	3VA
Ambient temperature			-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity			48~85% RH	48~85% RH	48~85% RH
Weight			220g	160g	210g

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
