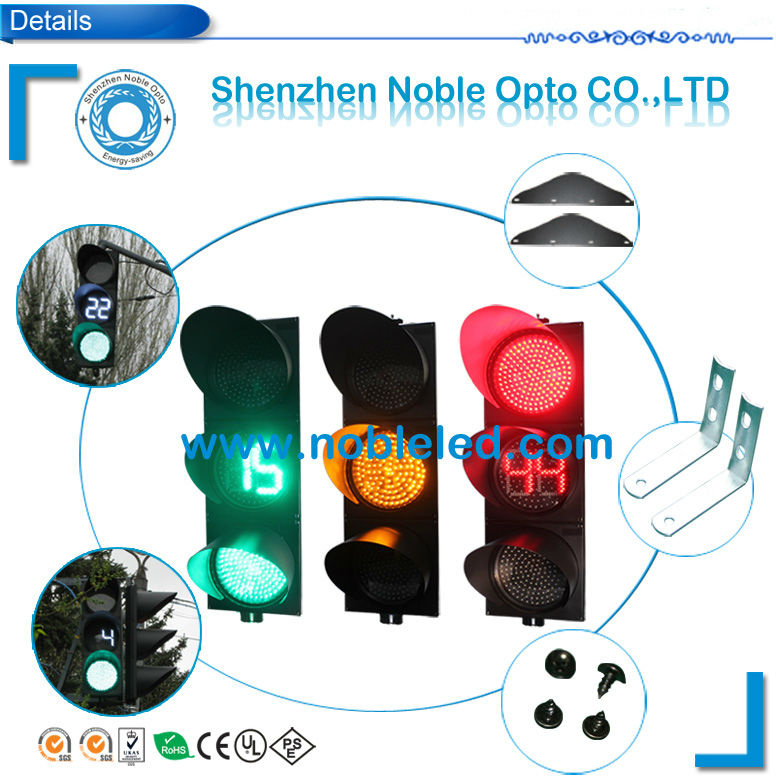

LED Countdown Timer
1> Shape: 300mm/12inch
2> New housing material: PC
3> Warranty: 2-3 years
4> High brightness LEDs with integrated optics
5> Visor material: Aluminium
6> Total harmonic destortion<20%
7> Operating temperature range(optional): -20° C to 60° C
8> Angle: Avg. ≥ 30° Down ≥ 30°
9> Operating voltage range: DC 10-30V; AV 85-265V
10> Insulation resistance: ≥ 2M
11> Life: 100, 000hours
LED traffic countdown timer:
A)When Green Vehicle Signal is on, the Green Digits will be shown with count down digits, to show the number of seconds before the Green Light is changed to be Yellow
B)When Yellow Vehicle Signal is on, the yellow light will on, and countdown timer will off.
C)When Red Vehicle Signal is on, the Red Digits will be shown with count down digits, to show the number of seconds the car driver needs to wait before the Red Light is changed into Green
D)The maximum number of two digits is 99 seconds. If the countdown time is set exceeding 99 seconds, the signal will not show the digit until it counts 99 seconds.
Advantage for pedestrian crossing light:
1. Save 90% power against incandescent
2. Improved visibility
3. Reduces emergency
4. Lamps design minimizes sun phantom effects
5. Easy to install into existing signal enclosure
Delivery Time: 1-3 days for samples; 7-10 days for order
Noble factory services:
. Good quality with reasonable price
. Small order is acceptable
. Delivery on time
. OEM, ODM services
|
Characteristics |
|
|
Color |
Size
(mm) |
Model Number |
Profile |
Voltage
|
LEDs |
Typical Wattage at 25º C |
Luminance
(cd/sq. m) |
Typical Dominant Wavelength
(nm) |
|
Red |
300 |
NBJD300R-1 |
Round |
85~265VAC |
168s |
< 12 |
> 8000 |
625 |
|
Yellow |
300 |
NBJD300Y-1 |
Round |
85~265VAC |
168s |
< 12 |
> 8000 |
590 |
|
Green |
300 |
NBJD300G-1 |
Round |
85~265VAC |
168s |
< 12 |
> 8000 |
500 |
|
White |
300 |
NBDJS300W-1 |
Round |
85~265VAC |
112s |
< 10 |
> 8000 |
6000K |
|
Gather to pack: |
|
Model |
housing material |
Dim. of Outer Carton |
Quantity/CTN |
G. W/CTN |
N. W/CTN |
packing |
|
JD312-2+DJS321-RG |
PC |
1170x430x270mm |
1PCS |
14.4 |
11.5 |
carton |
