Price: | US $ 3-3.5/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 50/Piece |
Pay Type: | T/T,Paypal,Western Union |
Applications:
This type wireless rf remote control is widely used to transmit data and signal control, remote control garage, wireless curtain, door locks, industrial control and wireless security alarm industries and other industries. We can designed for the special requirements of customers
1.Product Description

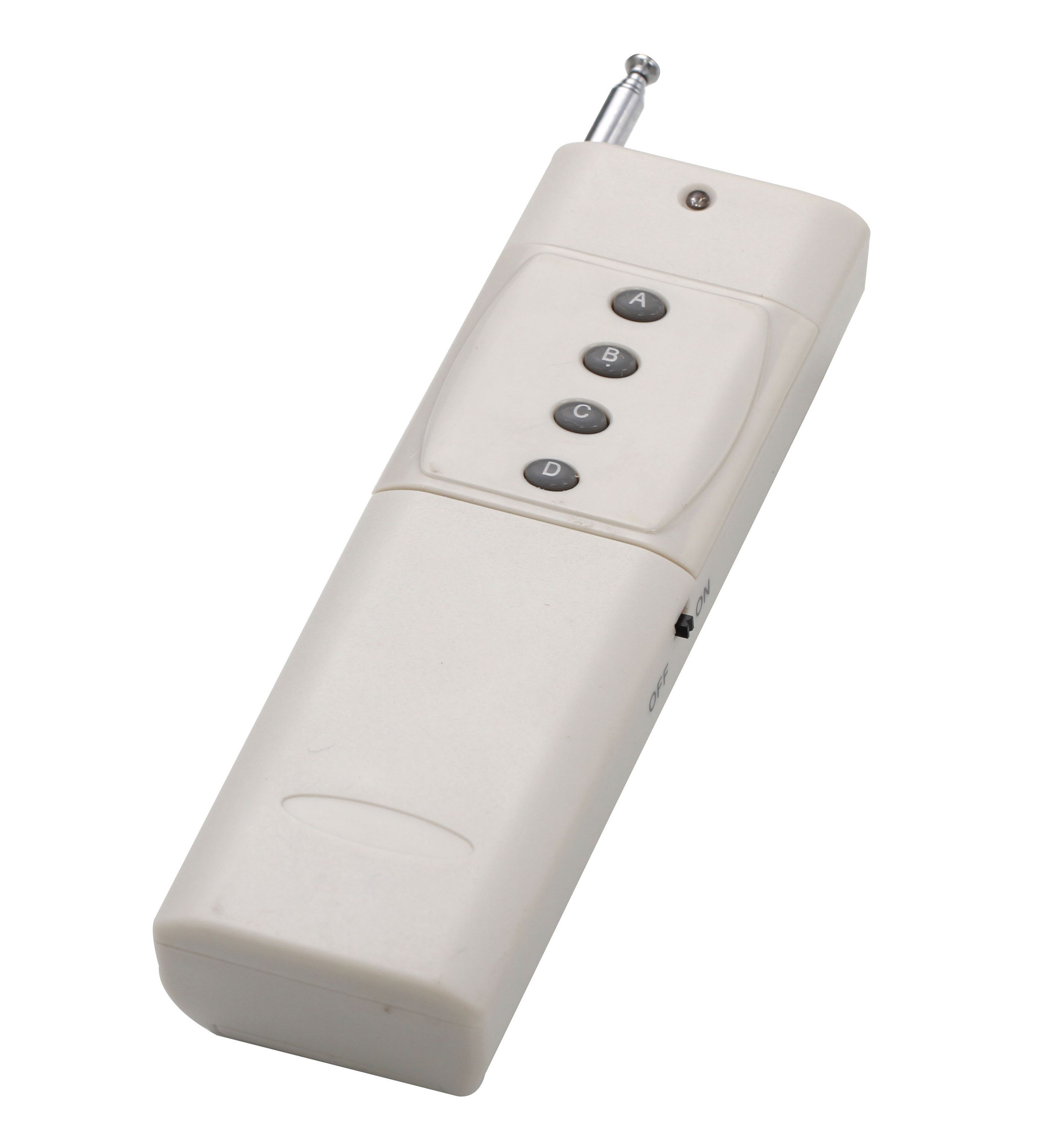

Model NO. | YS-TX3000-4A |
Operating frequency | 315MHz / 433 MHz |
Operating Current | 82 mA |
Transmission distance | 3000 M(open space) |
Frequency offset | ±75kHz(max) |
Size | 136.5*42*25 |
coding type | fixed code |
Working Chip | 2262.2240, 301, 1527 Ect. |
Delivery time | 1-25Days |
OEM/ODM Projects | Yes |
2.About Learning and clearing Method:
Red indicator --Power indicator, yellow indicator_Learning indicator, Green indicator_Working indicator.After getting to the power, the red indicator will be on, then press and hold the learning key for about 2s, the yellow indicator will be on, here put in learning state, release the learning key, press any button of the remote control, the yellow indicator would be off after flashing. Next, to check whether it learning successfully, please press the button of remote control, the green indicator would be on state, and the relay tapped, it is ok.When the learning indicator in On state, still press the button of remote control, after it getting to Off, it means clearing is OK.
3. Packing & Shipping
1) Packing: 1pcs/box and 500pcs/carton or customized
2) Shipping: DHL FEDEX, TNT UPS or othes as u required.
4. Services
1) Skype online for directly and Email for Offcial talking.
2) Sales know market and product very well, will give u some suggestion for the
application and market sells.
After order
1) Lift-time Technical support.
2) 1 Years quality warranty

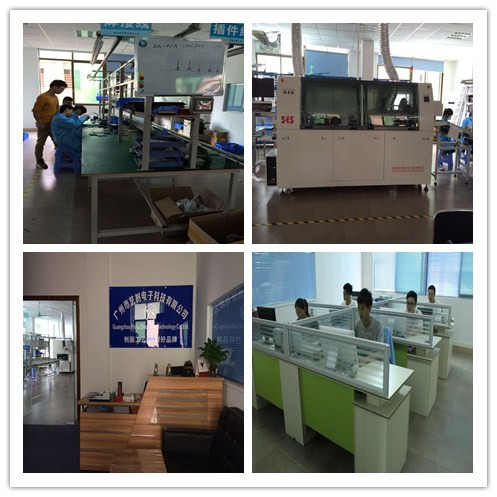

5. Company Show
In yishu, you are not only buying a good quality product with competitive prices, but a complete service offered by our whole yishu team.
Prod Model: | YS-TX3000-4A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operating Temperature: | -40~80° |
Working Current: | 82 Ma |
Resonant Mode: | Saw |
Operating Frequency: | 315MHz / 433 MHz |
Frequency Error: | ±75kHz(Max) |
Coding Type: | Fixed Code |
Working Chip: | 2262.2240, 301, 1527 Ect. |
Application: | Electrical Wireless Control Switch |
Signal Transmission: | RF Remote Control |
Type: | Button |
Certification: | SGS |
Universal: | Universal |
Voltage: | 12V |
Transmission Distance: | 3000 M |
Material: | Metal and PVC |
Battery Type: | 9VDC (6f22) |
