| Supplier: | Shenzhen Sunyuan Technology Co., Ltd. |
|---|---|
| Price: | US $ 20/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | ISO(SY) R-P-O |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | DIN 1*1 ISO L-U(a)-P-O |
| Input: | 0-50ohm,0-500ohm,0-2000ohm,0-10000ohm etc. |
| Output: | 4-20mA,0-20mA,0-5V,0-10V,1-5V etc. |
| Isolation Method: | Electromagnetic Isolation |
| Isolation Voltage: | 3000V |
| Package: | PCB Mounted |
| Main Circuit Type: | Current |
| Application: | PLC and Dcs or The Other Equipment Module Input at |
| Industrial Temperature: | -45~+85 Centigrade |
| Standard Current Signal: | 0-10mA/0-20mA/4-20mA. |
Characteristics:
Resistance, potentiomerter,electrical ruler, position sensor signal input
Accuracy Grade: (Non-isolation)0.1, (Isolation)0.2
Internally installed linear processing and long-line compensation circuit(non-linearity<0.05%)
Auxiliary power, signal input and output three port isolation:3000V DC
Auxiliary power supply:5V/12V/15V or 24V DC Single supply.
Input potentiometer signal:0-50Ω/0-500Ω/0-2KΩ/0-10KΩ Output standard voltage signal:0-2.5V/0-5V/0-10V/1-5V/ Ouput Standard current signal:0-10mA/0-20mA/4-20mA.
IC type,electrical ruler embedded,Water proof case and DIN35 Din-rail install method.
Industrial grade temperature range:- 40 ~ + 85 ºC.
Applications:
Electrical ruler ,angular transducer signal isolation, acquisition and conversion.
Displacement ,potentiometer signal acquisition/isolation and control.
earth wire interference suppression on industrial site.
Resistance signal convert to standard analog signal.
Distance measurement and Alarm.
Analog signal long-term distortionless transmission.
CNC,Rail transit equipment displacement control and isolation safety Barrier.
Description:

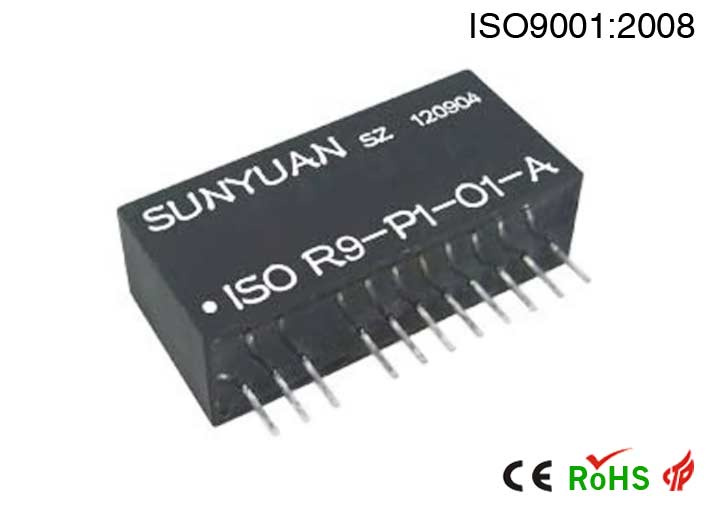

Sunyuan ISO V-4-20mA and ISO R-P-O series isolation amplifier is a kind of integrated circuit that can convert and isolate position resistance signal into standard signal that linear to resistance according to change in size. It integrates a set that multi-channel high isolated DC-DC converter, some high-powered signal isolators, and resistance linearization,long-term compensation, interference suppression circuits in single chip. Especially apply to convert/isolate resistance signal to standard signal, transmission of position signal, Electrical ruler, angular transducer signal isolation, acquisition and conversion.
The inner of the chip integrates high-efficiency DC-DC converter that produces two sets of isolated power separately supply for inner input port amplifier circuit, modulator circuit and output port demodulator circuit, conversion circuit, filter circuit. SMD technology and new technique quarantine measures make it's isolation voltage among auxiliary power supply, signal input, signal output up to 2500V AC, and meet industrial site temperature/humidity/vibration mal-environment requirements.
ISO V-4-20mA and ISO R-P-O series position signal isolation amplifier is easy to use, only need a few external component, then can realize position resistance signal transducer and isolation. And can realize industrial site one in two out and even one in four out.SY series input output non-isolated type product, has high precision and linearity (>0.05F.S), it usually applied in bull-in electrical ruler, angular displacement signal transducer etc, precision measuring instrument. Small size, easy stall. It can be installed inner of the sensor, directly convert the position, angular signal to standard 4-20mA signal. Zero and Span can be adjusted through external potentiometer.
Model selection and definition:
ISO(SY) R - P - O - A
| Isolation ISO Series | Input R | Power: P | Output O | Install |
| R1:0-50Ω | P1: DC24V | O1:4-20mA | A:PCB Mounted | |
| R2:0-100Ω | P2: DC12V | O2:0-20mA | B:DIN35 | |
| R3:0-200Ω | P3: DC5V | O4:0-5V | C:Internal insert | |
| R4:0-500Ω | P4: DC15V | O5:0-10V | D:waterproof case mounting | |
| Non-isolation SY Series | R5:0-1KΩ | P5:AC220V | O6:1-5V | Z:User-define |
| R6:0-2KΩ | P8:User-define | O8: User-define | ||
| R7:0-5KΩ | ||||
| R8: User-define | ||||
| R9: 0-10KΩ |
Product choose example:
| 1:non isolation | Input:0-1KΩ | P:24VDC | Output:4-20mA | Install:Waterproof case | Model:SY-R5-P1-O1 -D |
| 2: Isolation | Input:0-5KΩ | P:220VAC | Output:0-5V | Install:DIN 35 | Model:ISO-R7-P5-O4 -B |
Max work range:
(If beyond this range, it will cause product perpetual damaged)
| Continuous isolation voltage: 2500VAC |
| Power voltage input range: ±10%Vin |
| Welding temperature(10 sacs): +300ºC |
| Min load of output voltage: 2KΩ |
General Parameter:
| Precision ---------- 0.05,0.1% ,0.2% | Isolation ---------- input/ output/power |
| Power supply---------- DC5V,12V,15,24V,220VAC ±10% | Insulation resistance ---------- ≥20MΩ |
| Work temperature---------- -25 ~ +70ºC | Withstand voltage ---------- input/output/Power |
| Work humidity---------- 10 ~ 90% (non-condensation) | 1500VAC,50Hz,1min,leakage current 1mA |
| Storage temperature---------- -45 ~ +80ºC | impact resistance voltage---------- 3KV, 1.2/50us(peak) |
| Storage humidity---------- 10 ~ 95% (non-condensation) |
Input Parameter:
| Electrical ruler/three -terminal adjustable potentiometer /rotation angle sensor etc. | 0-50Ω/0-100Ω/0-200Ω/0-500Ω/0-1KΩ/0-2KΩ/0-5KΩ/0-10KΩ |
Output Parameter:
| Output Item | Output overload capacity |
| Current signal:0-10mA/0-20mA/4-20mA etc, | No more than 350Ω,if need >350Ω, please inform |
| Current signal:4-20mA | P=24V, Max load=650Ω |
| Voltage signal:0-5V/0-10V/1-5V etc, | ≥2KΩ |
