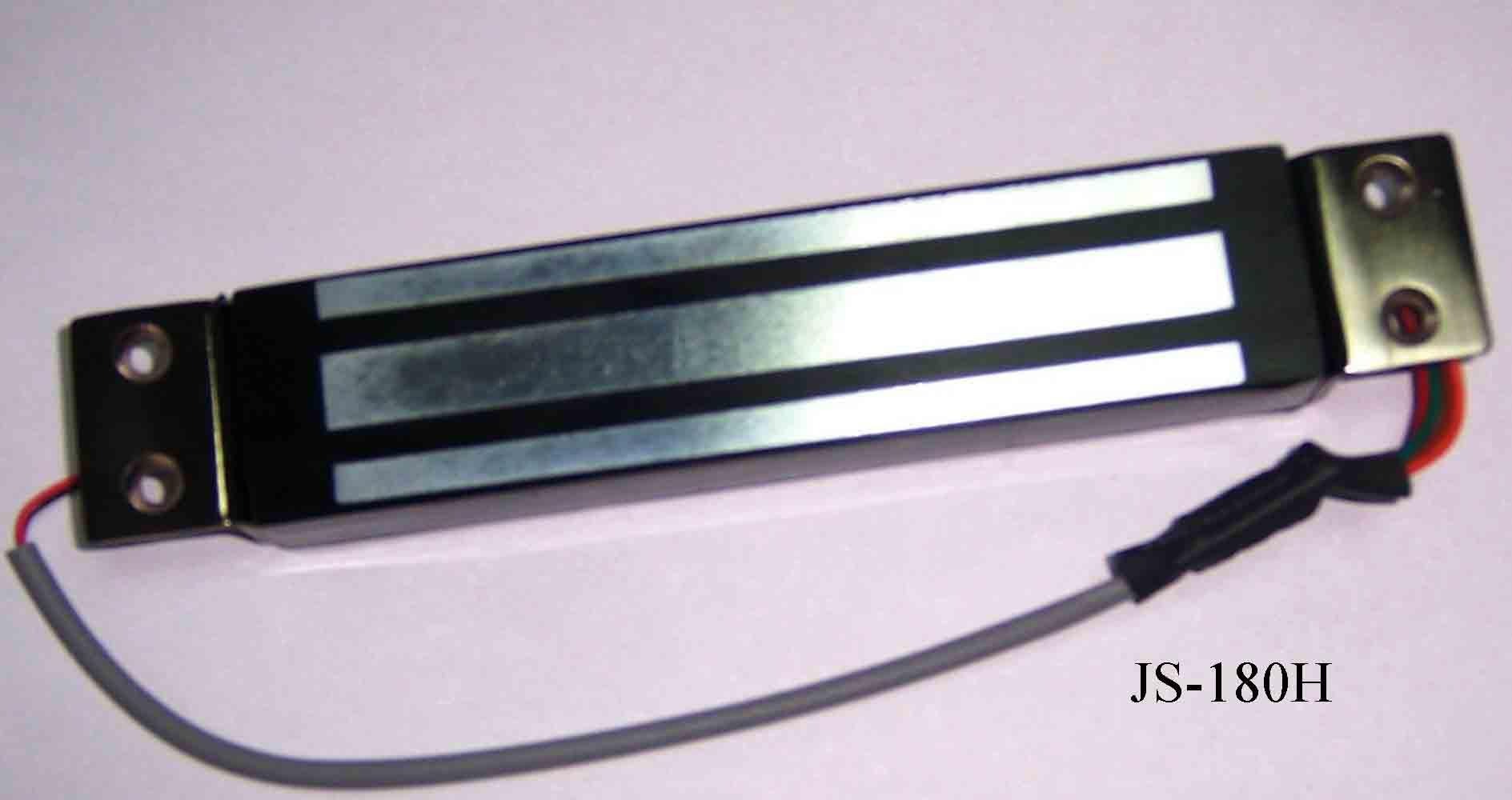

Single Door Magnetic Lock with Mortise Mount (300Lbs) (JS-180H)
Lock Size: 190Lx31Wx28H(mm)
Armature plate: 130Lx33Wx12H(mm)
Holding Force: 180kg(300Lbs)
Voltage: 12/24VDC
Current Draw: 12V/380mA 24V/190mA
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: -10~+55 (14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 1.2kg
Packed with box
Box dimension: 240LX56WX50H(mm)
Standard Packing: 20PCS
Standard carton dimension: 400Lx280Wx182H(mm)
Collinear Load Test 180kg, 300pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
