Product Specifications
| Prod Model: |
A10B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wireless |
| Network Site: |
Intermediate Node Routers |
| Transfer Rate: |
10/100/1000Mbps |
| Firewall: |
Firewall |
| Ports: |
≤4 |
| Port Structure: |
Modular |
| Application: |
SOHO |
| Network: |
WCDMA |
| Performance: |
Non Line Speed Router |
| Architecture: |
Single Bus Symmetric Multi CPU |
Product Description
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Caratar
Model Number: A10B
Universal Charger: Supports charging all kinds of android phones, tablet PCs,
Charging voltage: 5V
Material:: Flame retarded PC
Charging Interface: Up to 4 USB charging port
Installation: wall power socket
Application: Home,commercial,industrial etc
3G Internet: Support
Wired network interface: 86X86mm
Electrical Characteristics: Support
Size: 86mm x 86mm x 42mm
Packaging & Delivery
Packaging Details: | Our wifi socket for home automation packaging:
1PCS/non-woven bag, 10PCS/white box, 100PCS/carton
Carton size:49.2*33*19.5CM ,G/W:11 kg N/W:10kg |
|---|
| Delivery Detail: | 3days for sample |
|---|
Factory price Universal home automation universal wifi router socket outlet
Range extender Function and Wireless Type Universal Wireless range extender
Product Description
Embedded MIPS 24KEc 580MHz with 32KB I cache/16KB D cache.
2T2R 2.4GHz with 300 Mbps PHY data rate.
Legacy 802.11b/g and HT 802.11n modes.
20/40 MHz channel bandwidth.
Hardware NAT with IPv6 and 2 Gbps wired speed.
WEP64/128,TKIP,AES,WPA,WPA2,WAPI.
USB 2.0 host/device dual mode, Support 3G module.

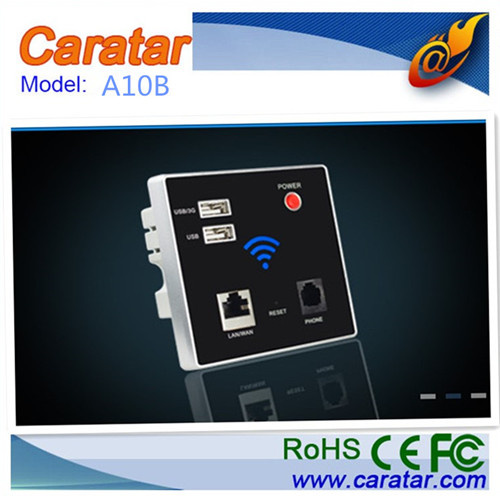

Photo Show
Product application
Applicable to corporate boardrooms, cafes, restaurants and the hotel lobby and lounge area, shopping and leisure area,you can increase at any time as needed.
Product Specifications
Wireless Access Point | Transmission standard | 802.11b/g /n |
| Frequency | 2.4GHz |
| Mode | 2T2R |
| Data rate | Up to 300Mbps PHY |
| Multiple BSSID | Up to 16 channel |
| Wi-Fi security | WEP64/128,TKIP,AES,WPA,WPA2,WAPI |
| WPS | Support(PBC,Pin) |
| WDS bridge | Support |
| Qos | WMM,WMM-PS |
| Voice enterprise | 802.11k+r |
| Network protocol | TCP/IP,UDP,HTTP,ARP,DHCP,ICMP,NAT,DNS,PPPoE,FTP |
| Wired Ethernet | RJ45 Interface | WAN/LAN : 10/100 Mbps Ethernet switch |
| USB Battery charging | Charge port | Up to 4 x USB charge |
| Charge current | Up to 3A total |
| Charge volt | 5V |
| Charge speed | Fast charging |
| Support device | Universal charging to various devices : Support iPhone/iPad, Android phone, other smart mobile phone,and the other portable devices |
| Telephone line port | RJ11 interface | Connect telephone line to RJ11 port |
| 3G | 3G interface | Support 3G modul by usb2.0 interface |
| Storage | SD card | Support SD/TF card storage up to 64GByte |
| USB storage | Support USB mass storage |
| General | Power | AC 220V/110V/380V |
| Power consumption | 0~15W |
| Operating temperature | -20 to+60 °C |
| Storage temperature | -40 to+60 °C |
| Operating humidity | 20- 80%RH |
| Storage humidity | 20- 95%RH |
| Dimension | 86mm x 86mm x 42mm(L x W x H) |
Product features
Wall type WIFI router with the country's first telephone interface
The 11N 150M Wireless AP, transfer faster and more stable
Exempt hotel walls trouble playing online module
Wired and wireless integration
The most complete wireless encryption technology, with WEP, WPA-PSK, WPA2-PSK, WPA, WPA2, MAC address authentication, and other encryption / security settings to make wireless networks more secure
Support relay function, let your WIFI broader range of distances.
Installation Instructions
Remove the cover(Use a screwdriver to remove the cover from the panel surface)
Connecting wire(The 220V wires, cables, telephone lines connected to the specified interface on the rear panel to ensure a firm connection,Connect the power off before connecting wires to connect 220V,Avoid electric shock).
Mounting screws(Remove the screws from the box, put the socket into the bottom box fixed rear panel, the panel surface cover to cover, the surface.In the bottom box to adjust the screws tighten the screw ratio.)
Install the cover(Cover snaps into the slot above the panel).
