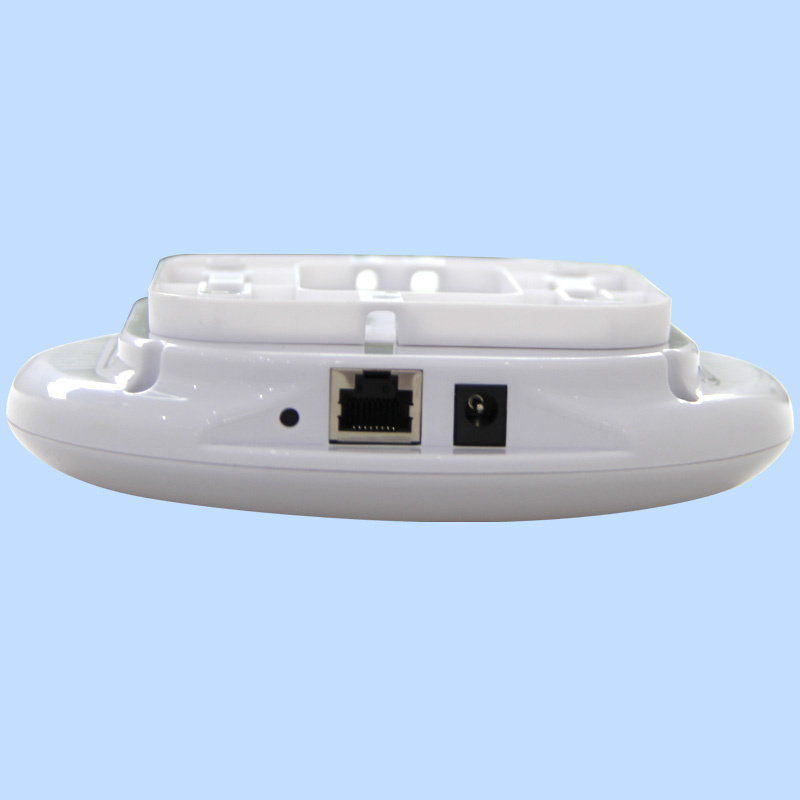

300Mbps Wireless Access Point (AP) Support Software Management (TS306F)
Product Specifications
| Prod Model: |
TS306F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
2X RJ45 Port and 1xrj11, 1 USB Port |
| Poe: |
Support |
| Size: |
86mmx86mmx48mm |
| Wireless Standard: |
802.11b/G/N |
| Certification: |
CE |
| Work Mode: |
AP |
| WiFi Antenna Type: |
Built-in |
| Antenna Gain: |
16dBi |
| Color: |
Gray |
| Voltage: |
Poe:48V;DC:12V |
| Transmission Rate: |
150Mbps |
| Type: |
Wireless Access Point |
Product Description
Product Overview
TS306F is a wireless access point(AP)based on 802.11n. It is suitable used in hotel,office building,hospital and school, This wireless AP support POE power supply,and the wireless transmission up to 300Mbps.
Product specification
| Standard | IEEE802.3af,IEEE 802.11ab,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,CSMA/CA |
| Interface | WAN | 1*10/100Mbps RJ45 (Auto MDI/MDIX), POE-PD function |
|
|
| RESET | SUPPORT |
| Wireless | Frequency range | 2.412~2.4835 GHz |
| Transmission rate | 11b:1/2/5.5/11 Mbps
11g:6/9/12/18/24/36/48/54 Mbps
11n:up to 150 Mbps |
| Working channel | 2.4GHz 1-13channel |
| DSSS | Support |
| Modulation type | 11n/g:QPSK,BPSK,16-QAM,64-QAM,256QAM for OFDM
11b:CCK,QPSK,BPSK; |
| Media access protocol | CSMA/CA with ACK |
| Data encryption | WEP;WPA/WPA2;WPA-PSK/WPA2-PSK |
| Transmit power | 2.4G:15 dBm(max) |
| Antenna | 1 Built-in antenna |
| Built-in directional 2.4 GHz |
| Network media | 10Base-T:cate3,cate5 UTP
100Base-TX:cate5 ,cate5e UTP |
| LED indicator | Port | ( system status indicator light and power multiplexing)*1 |
| Other | LAN indicator |
| Size | Wall-in 86type |
| Environment | Work temp.:0ºC ~ 40ºC |
| Storage temp:-40ºC ~ 80ºC |
| Working Hum.:10% ~ 90% RH No condensation |
| Storage Hum.:5% ~90% RH No condensation |
We are a new company, But my team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.
Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.
Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.
Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.
Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.
Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.
Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
