1. Switch: Power electronic component is working at swich status not linear status
2. High frequency: Power electronic component is working at high frequency status not the low frequency closed to power frequency
3. DC: The output voltage of power supply is DC not AC
Working characteristic:
1. Small size, light weight
2. Small power waste
3. High efficiency: Power transistor is working at switch status, so the power waste is small, conversion efficiency is high, generally it's about 60-70%, and the linear power is only 30-40%
All the above details are about the XIMENMG if you have any query pls do feel free to contact us.
Normal switching power supply:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
2 years warranty

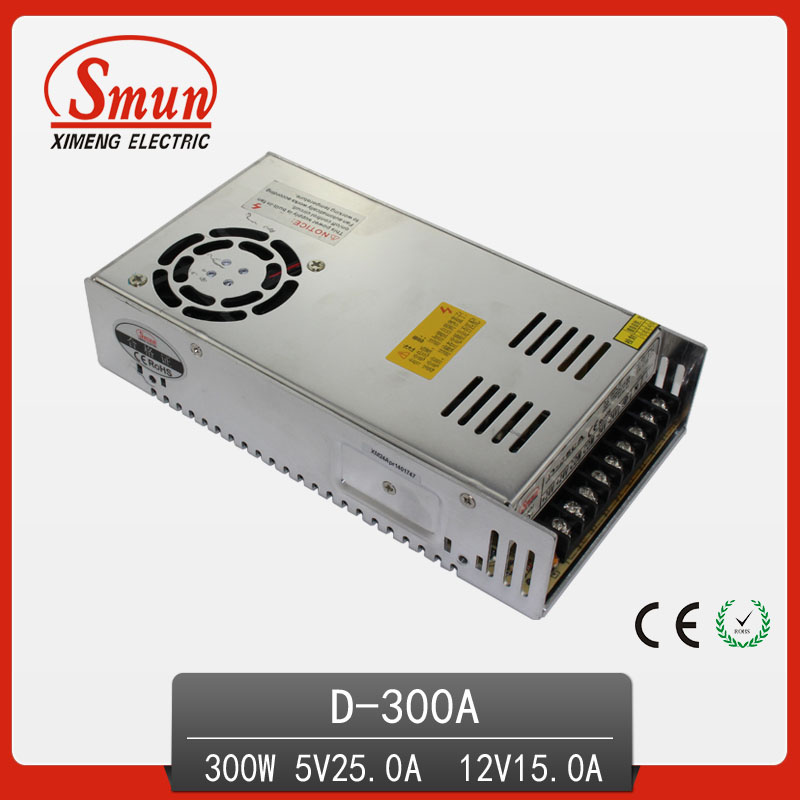

| D-300W DUAL output switching power supply |
Model NO. |
OUTPUT |
Tolerance |
range |
efficiency |
| D-300A | 5V, 2-25A
12V, 0.5-15A | ± 2%
± 6% | 60mV
150mV | 78% |
| D-300B | 5V, 2-25A
24V, 0.4-0.7A | ± 2%
± 7% | 60mV
200mV | 82% |
| AC input voltage range | 85-132vac/170-264vac 47-63hz 240-370vdc |
| input current | 2.5A/115V 1.25A/230V |
| AC inrush current | 35A |
| Leakage current | < 3.5mA/240VAC |
| DC adjustable range | ± 10% rated output voltage |
| over load protection | 105-150%cut down output, auto-recovery |
| over-voltage protection | 115-135% |
| set up, rise, hold up time: | 200ms, 100ms 30ms |
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes |
| working temperature | -10~+60° C, 20-90%RH |
| weight/packing: | 1.1kg, 16pcs/20kg |
| Material | Aluminum |
| Size | 215*115*50M M |
| certificate | CE ISO9000 ROHS |
| Warranty year | 2 years |
| Protections | Short circuit / Over load / Over voltage |
