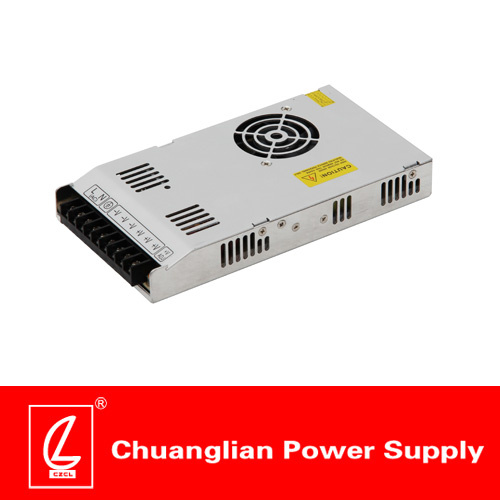

300W Slim Single Output Switching Power Supply

Name: 300W Slim Single Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 764326355
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 13.2-14.6/Piece
Trade Terms:	FOB,CPT
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Model:A-300AD

Features:

Ultrathin, Small, Make the LED display

thinner and less weight

High reliability, Strong load capability

Protections: Over Load/Short Circuit

100% full load high temperature burn-in test

1 years warranty

Size: 217x117x30mm

AC input voltage range................................186-264VAC

Input frequency............................................47-63Hz

AC inrush current.........................................Cold start, 60A/ 230VAC

Line regulation(full load) ............................ ±1%

Output over load protection........................ hiccup mode, auto-recovery

Rise, hold up time........................................100mS, 10mS at full load

Withstand voltage.........................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC

Working temperature....................................-20ºC~ +60ºC( refer to temperature derating curve)

Storage temperature....................................-40ºC~+85ºC@100% 20%~95%RH (non condensing)

Safety standards..........................................GB4943, UL60950-1, EN60950-1

EMC standards............................................GB9254, EN55022 class A

Cooling method............................................Free air cooling convection

Model No.	DC output	Load regul.	R&N	Effi.
A-300AD -5	5V,0~60A	±2%	100mV	80%
A-300AD -12	12V,0~25A	±1%	120mV	82%
A-300AD -24	24V,0~12.5A	±1%	200mV	83%

Prod Model:	A-300AD
Markets:	Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Output Voltage:	5V, 12V, 24V
Size:	217X117X30mm
Output Type:	Single
Warranty:	1 Year
Certification:	CE
Output Power:	300W
Input Voltage:	186-264VAC
Brand:	Czcl

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

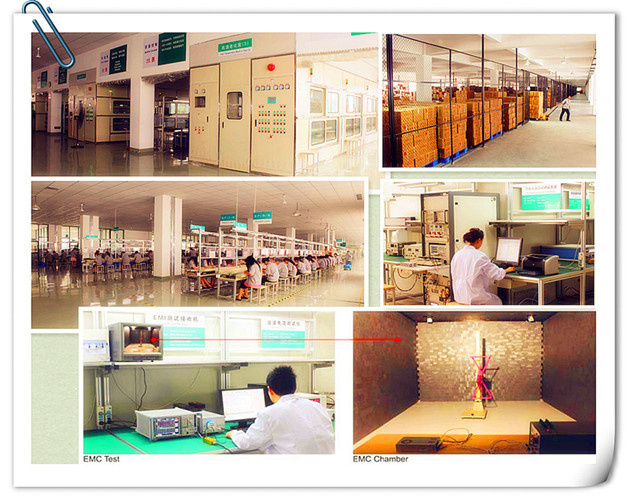

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
