3025 Phenolic Cotton Cloth Laminate Insulation Sheets

Name: 3025 Phenolic Cotton Cloth Laminate Insulation Sheets
Brand: china-manufacturer-directory.com
SKU: 702998912
Availability: InStock
Rating: 4.5 (143 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 2200/Ton
Min Order:	1/Ton
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	3025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia
Thickness:	0.5-120mm
Size:	10202070mm,12202440mm
Package:	Carton
Storage Life:	1 Year
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Yarn
Thermal Rating:	E 120
Maximum Voltage:	20KV~100KV
Brand:	Chr

Product Description

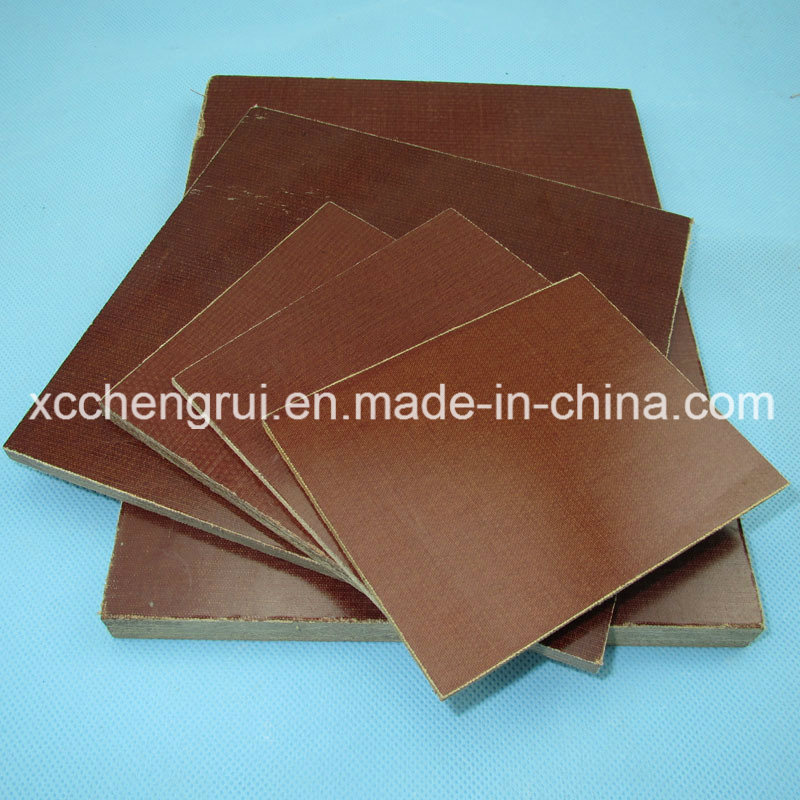

3025 Phenolic cotton cloth laminate sheet

Heat-resistance: E CLASS 120C
Material: Cotton cloth and phenolic resin
Property: With high dielectric and mechanical property.
Application: With certain mechanical performance and electric performance for machine, motors and electrical apparatus, as well as transformer oil.
The specification:
Thickness(mm): 0.5-120mm
Size: 980X1980mm, 1020X2040mm, 1000X2000mm
Pacakge: PALLET Storage life---1 year

Tested Item	Unit	standard
Density	g/cm3	1.30-1.42
Martin temperature "vertical"	ºC	>=125
Vertical layer to bending strength "vertical	Mpa	>=105
Tensile strength "vertical"	Mpa	>=65
Impact strength "beam method without gap samples, longitudinal	kJ/	>=25
Bonding strength	N	>=5400
Vertical layer to strength (90 ±2 ºC in transformer oil > 3mm, thickness, the side processing to 2.0 mm ±0.2 mm)	MV/M	>=2.0

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
