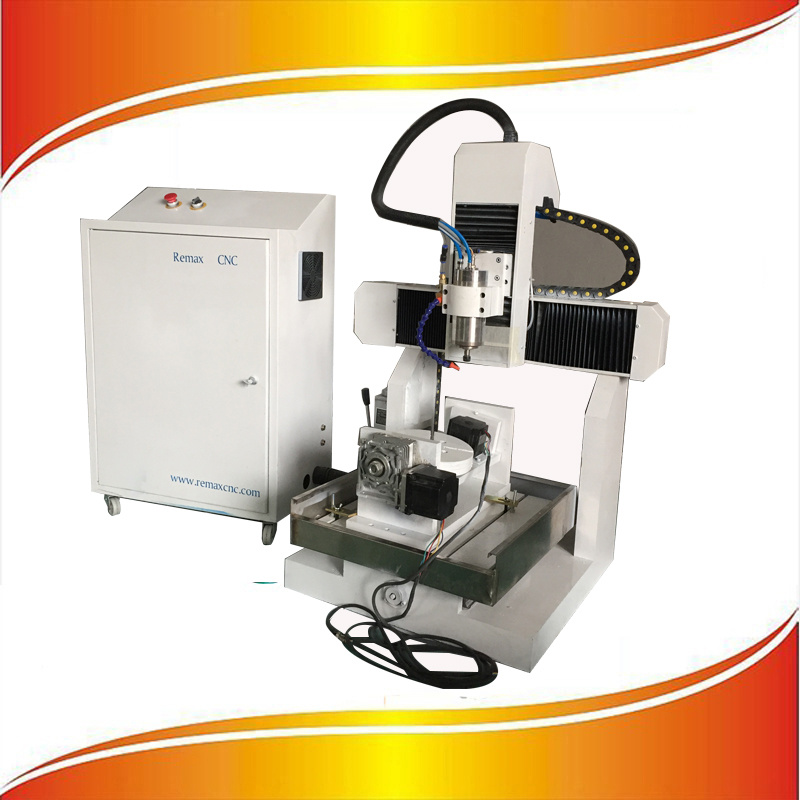

3040 5 Axis CNC Machine

Product Specifications

Prod Model:	Remax-3040
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wood, Metal, Plastic
Machine Structure:	Cast Iron
Spindle:	1.5kw Water Coling Spindle
Rotary Axis:	100mm
Table Moving:	Yes
Rails:	Hiwin Square Rails
Transmission:	Ball Screw
Oiling System:	Yes
Reducer:	Yes
Control System:	March 3
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Manual
Controlling Mode:	CNC
Certification:	SGS

Product Description

Application:

For Remax-3040 5 axis cnc router is used for engraving and cutting wood, plastic, acrycli, aluminum, brass, MDF, PVC, plywood, double color board, PCB and other materials. It can both process plate and round subjects.

Features:

1.Remax-3040 5 axis cnc router can work at same time for 5 axis. it use March 3 control system, can save the cost greatly.
2.for the rotary axis configurate with reducer, so it can stop at any angel.
3.the whole machine is cast iron, so it can process metal kind of materials.
4.Table moving and ball screw transmission can prove the work precision highly.

Parameters:


NO.	Description	5 axis cnc router
1	X,Y,Z Working Area	300*400*300mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	aluminum Table
5	Frame	cast iron Structure
6	X, Y Structure	Hiwin Rail Linear Guide
7	Z Structure	TBI Ball Screw
8	Max. Power Consumption	(Without Spindle)  3.0kw
9	Max. Rapid Travel Rate	25000mm/min
10	Max. Working Speed	18000mm/min
11	Spindle Power	1.5kw water cooling spinle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper Motor
14	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
15	Command Language	G Code
16	Operating System	March3 System
17	Computer Interface	USB
18	Flash Memory	128M(U Disk)
19	Collet	ER25
20	X,Y Resolution	<0.01mm
21	Software Compatibility	Type3
22	Running Environment  Temperature	0 - 45 Centigrade
23	Relative Humidity	30% - 75%
24	Inverter	Delta/Fuling
25	Electrical components	Schneider
26	Limit switch	OMRON
27	Driver	Leadshine or Yako

Our Services:

A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.

FAQ:

A This is the first time I use this kind of machine, is it easy to operate?

There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

C MOQ ?

The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you?   ( Very easy and flexible !)

1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.

E 10 good reasons why you should buy from us?

1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours
10 fast delivery, save your time.
