Product Specifications
| Prod Model: |
RY-RXB12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Voltage Range: |
3.3V-5.5V |
| Frequency: |
315MHz / 433.92MHz |
| Part Number: |
Ry-Rxb12 |
| Modulation: |
Ask/Ook |
| Key Words: |
RF Receiver Module |
| Wireless Receiver Module: |
433MHz Receiver Module |
| 315MHz Receiving Module: |
Ask/Ook Receiver Module |
| RF Module: |
Ask/Ook Receiver Super-Heterodyne Receiver Module |
| Alarm: |
Receiver |
| Type: |
Wireless |
| Usage: |
Window |
| Certification: |
RoHS |
| Receive Frequency: |
433.92MHz |
| Transmission Rate: |
≥20Kbps |
| Channel: |
1CH |
Product Description

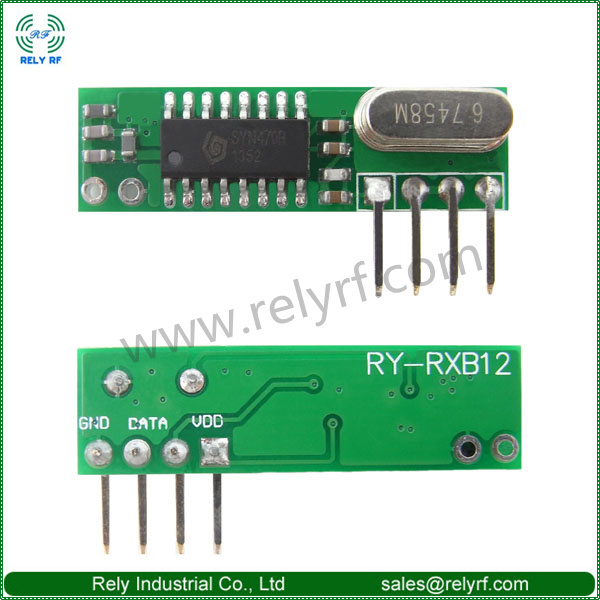

433/315 MHz ASK/OOK Receiver Super-Heterodyne Receiver Module RF Receiver Module RY-RBX12
type:RF Receiver module
keywords: Receiver modules,Super-heterodyne receiver with decoder
part number: RY-RXB12
General Description:
RY-RXB12is an ASK/OOK receiver Super-Heterodyne Receiver Module, which is designed specifically for unlicensed remote-control and wireless security receiver operating at 315/433.92MHz under FCC Part 15 regulation or pass ETSI certification. The RY-RXB12is based on a single-conversion, super-heterodyne receiver architecture and incorporates an entire Phase-Locked Loop (PLL) for precise local oscillator generation. It can be used in OOK/ HCS/ PWM modulation signal and demodulate to digital signal. The RY-RXB12is a high performance module at a competitive cost and easily to design for your product. The RY-RXB12module can be also a RoHS compliant product..
Features:
Receiver Sensitivity: -107dBm;
Frequency: 315/433.92MHZ (Specially frequencies can be customized)
Very low RF re-radiation at the antenna
Operation temperature -30 ~85 degrees centigrade
Supply voltage: 3.3V-5.5v
Compatible with most AM (ASK/OOK) transmitters
Small package: SIL-6PIN (2.54mm of pin distance)
Dimension: 30X8.5X5 mm
Electrical Characteristics:
Condition: a=25ºC Vcc=5.0V Frequency=315MHZ
Parameter
Specification
Unit
Condition
Min
Type
Max
Frequency Range (Fc)
314.9
315
315.10
MHZ
Modulation Mode
ASK
Receiver Sensitivity
-107
dBm
1K Kbps/50 ohm
Receiver Bandwidth
200
KHZ
Start-up time(Ton)
mS
Operating Temperature
-30
+80
ºC
Current (IRC)
2.5
2.5
2.7
mA
Working Voltage (Vcc)
3.3
5.0
5.75
V
Output high Level
3.5
5
V
RL=500K
Image Rejection
dB
336.4MH
Output Low Level
0.5
V
Condition: a=25ºC Vcc=5.0V Frequency=433.92MHZ
Parameter
Specification
Unit
Condition
Min
Type
Max
Frequency Range (Fc)
433.82
433.92
434.02
MHZ
Modulation Mode
ASK
Receiver Sensitivity
-107
dBm
1K Kbps/50 ohm
Receiver Bandwidth
200
KHz
Start-up time(Ton)
mS
Operating Temperature
-30
+80
ºC
Current (IRC)
3.8
3.9
4.1
mA
Working Voltage (Vcc)
3.3
5
5.75
V
Output high Level
3.5
5.0
5
V
RL=500K
Image Rejection
dB
412.52MHZ
Output Low Level L
0.5
V
Dimension:
Pin Assignment:
PIN NO.
1
2
3
4
5
6
Name
ANT
GND
VDD
DATA
DATA
GND
Description
RF Input
Power Supply GND
Power Supply VDD
Digital Data Output
Digital Data Output
Power Supply GND
Note: For whip antenna: 22.6cm for 315MHz, 17cm for 433.92MHZ is recommended.
Application:
l RKE;
l Remote door opener;
l Wireless Security Alarm;
l Wireless door bell;
l Wireless data transmission
