Product Specifications
| Prod Model: |
50mm*0.28mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 0.28mm*1.06m: |
0.28mm*1.2m |
| 0.28mm*76cm: |
0.20mm-0.40mm |
| Type: |
High Efficiency |
| Material: |
Stainless Steel Wire |
| Hole Shape: |
Diamond |
| Application: |
Gas Filtration |

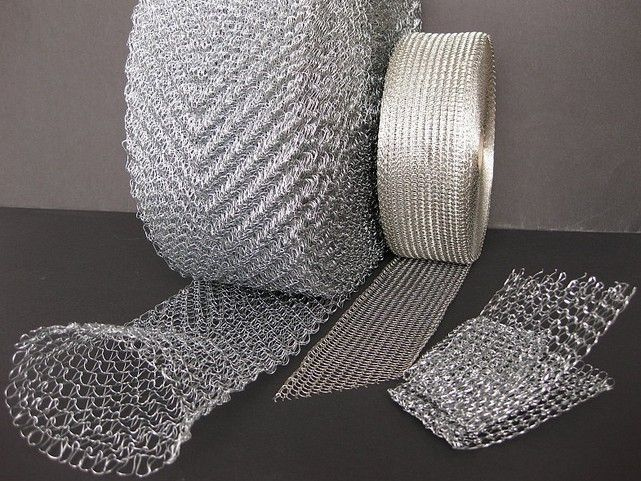

Product Description
1. Wire diameter range: 0.10mm-0.55mm (common wire through is: 0.20mm - 0.25mm).
2. Hole size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same, width is different).
3. The surface condition of the Knitted Wire Mesh: The flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)
4. The common width of Knitted Wire Mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, 760mm, 1200mm etc...
5. The main material of Knitted Wire Mesh: Aluminum wire, stainless steel wire, galvanized wire, fibre wire, plastic wire, PP, PC, PE, PVC, etc.
6. Main purposes: Mainly used for processing demister for separation of the gas inside the droplets. Can also be extrusion molding, for manufacturing a filtration device.
Specification List of Knitted Wire Mesh
|
Model
| Specification
| Wire Diameter
mm
| Materials
| Area/Weight
m 2 /kg
| Technical Notes
|
Standard
| 40-100 Model
60-150 Model
140-40 Model
40-100 Model
40-100 Model
40-100 Model
40-100 Model
| 0.1x0.4
0.1x0.4
0.1x0.4
0.27
0.1x0.4
0.25
0.2
| stainless steel wire
stainless steel wire
stainless steel wire
gal. iron wire
copper wire
polyamide fiber
PVC fiber
| 1/0.5
"
"
1/0.7
| 1, For 40-100 model: 40 holes in 100% width
2, Metal filter mesh can be processed into weaves type
|
High Efficience
| 90-100 Model
80-100 Model
90-150 Model
200-400
60-100 Model
80-100 Model
|
0.1x0.3
0.1x0.3
0.1x0.3
0.1x0.3
0.1-0.15
0.1-0.15
| stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire
polyamide fiber
polyamide fiber
| 1/0.6
1/0.6
1/0.6
1/0.6
|
|
Great penetration
| 20-160 Model
30-150 Model
70-400 Model
| 0.1x0.4
0.1x0.4
0.1x0.4
| stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire
| 1/0.4
1/0.4
1/0.4
|
|
