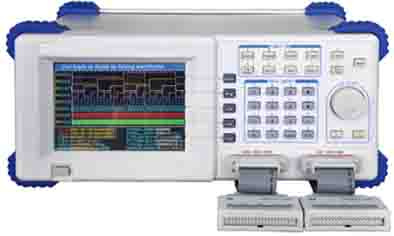

32 CH Logic Analyzer With USB and RS-232 C

Name: 32 CH Logic Analyzer With USB and RS-232 C
Brand: China-Manufacturer-Directory.com
SKU: 694935565
Availability: InStock
Rating: 5 (146 reviews)

Supplier:	Wellzion Electronics Technology Co., Ltd
Price:	US $ 00000/Piece
Min Order:	1
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Large scale integrated circuit, FPGA, SOPC, high speed and large memory

Perfect function of start, trigger and delay to track and take the concerned data effectively

32 data sampling channels, 2 external clock channels

A fast and effective debugging tool for hardware and software of MCU

5.7" color LCD display, the resolution 320× 240 points

Standard interface is USB Device and RS-232

Main Specifications	SA8320 Logic Analyzer
Input	Input Channel: 32 data sampling channels, 2 external clock channels
	Threshold Voltage: 6 independent and adjustable threshold voltages
	Range: -6 V -- +6 V
	Resolution: 0.1 V
	Input Impedance: R ^ > 100 kΩ , C ^ < 8 pf
Sample/Memory	Sampling Rate
	Timing Rate 1 Hz - 100 MHz
	State Rate 1 Hz - 35 MHz
	Sampling Phase: rise edge, falling edge
	Memory Depth: 256 K bytes / channel
Trigger	Trigger Condition: 32 bits trigger level, 32 bits trigger comparand.
	Event Count: 1 - 999
	Memory Delay: 1-260000 sampling cycles
Cursor Control	Measurement Cursor, Trigger Cursor, Search Cursor
Code Generator	Code Type:
	Channel 00 to 15 are counter with adding one; Channel 16 to 29 are shift pulse; Channel 30 to 31 are used for monitoring external clk1 and clk2
	Code Rate:
	Frequency: 1 Hz ~ 50 MHz (cycle 20 ns -1s) Resolution: 10 ns
General Characteristics
Power: AC100 -240 V, 45 - 65 Hz, < 30 VA
Dimensions: 329× 283× 155 mm
Weight: Approx. 4.3 kg
