32 Zones Wireless Security Alarm System
1. 32 zones with 32 different zones indicated on panel.
2. With internal back-up rechargable battery for more than 48 hours
3. Each zone can be put more sensors.
4. Partial disarmed optional by remote control. One keypad easy to partial disarmed. Some sensors that programed in the second zone.
5. Auto-dial up 6 phone numbers and recycle to repeat unless confirmed.
6. Store voice recorded message (10 second), it can be recovered. When received alarm Message, it speaks as you spoken.
7. Li-ion battery built-in panel support 36 hours. Auto-switch if AC power is off.
8. Telephone manages the alarm system, convenience.
9. Phone trunks protected to avoid any designing destroy.
10. LED on the panel to display protection zone.
11. PIR detector is preset for the second zone which can be disarmed solely
12. Audible / mute siren optional.
13. Quick program by the panel keyboard.
14. When received alarm call, you can press the keypad on the phone to disarm / arm / monitoring / start on / off siren
15. Panel keyboard password protected and incoming calling password protected.
16. Delayarm/alarmoptional
17. Siren sounds time / alarm triggered time / armed alarm times to be rogrammed o be delayed
18. All panels can connect with the alarm receipt managing centre
19. Easy to learn the new remote control to change the code and work with new sensors
Specification:
1. Wireless frequency: Two option: 433MHz or 315MHz
2. An adaptor: Option: Input electricity from 110 acv ~240 AC, customized.
Adaptor choosing: Two round pins, two flat pins, three pins customized
3. Wireless receiving distance in open place: >200m, indoor: 30~50m,
( depend on the surrounding environment and wireless interference)
4. Standby current: < 10ma
5. Alarm volume: Internal: 95dB, external siren: 110~120 dB
6. One control panel with one internal siren: Working voltage: 9 dcv, 500ma.
7. Two wireless remote controllers: Four button: Disarm / arm / panic / PIR detector
8. One wireless magnetic door sensor: 12 dcv
9. One wireless infrared detector: 10m*120degree horizontal 60degree vertical
10. Optional sensor: Wire siren, wireless smoke detector, gas leakage detector, vibration sensor, siren with strobe light, remote control, all sensors as we selling

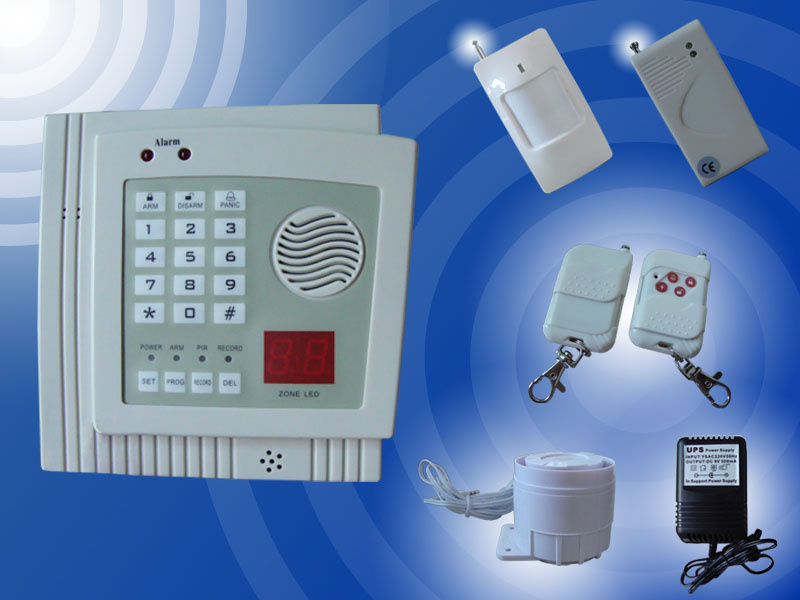

Standard Package list:
Mainframe X1
Remote contol X2
Wireless PIR Motion Sensor X1
Wireless Door magnetic Sensor X1
AC/DC AdaptorX1
User Manual X1
