SINO IDO MACHINERY CO., LIMITED >> 320HP Bulldozer Crawler Bulldozer SD8b Tractor Bulldozer

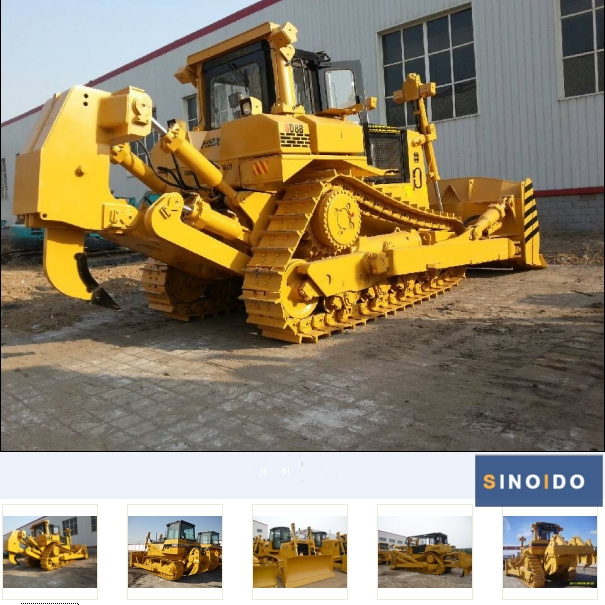

320HP Bulldozer Crawler Bulldozer SD8b Tractor Bulldozer

Name: 320HP Bulldozer Crawler Bulldozer SD8b Tractor Bulldozer
Brand: china-manufacturer-directory.com
SKU: 703045192
Availability: InStock
Rating: 4.6 (116 reviews)

Supplier:	SINO IDO MACHINERY CO., LIMITED
Price:	US $ 200000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	320HP Bulldozer, Bulldozer SD8B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	320HP Bulldozer SD8b

Product Description

A bulldozer is a crawler (continuous tracked tractor) equipped with a substantial metal plate (known as a blade) used to push large quantities of soil, sand, rubble, or other such material during construction or conversion work , mining, forestry, land clearing, infrastructure development, and any other projects requiring highly mobile, powerful, and stable earth-moving equipment.

320HP Bulldozer , Crawler Bulldozer SD8B, Bulldozer SD8B

ENGINE		PARAMETER
MODEL	CUMMINS ,NTA855-C360	Dimensions	8.56m4.13m3.69m
Flywheel power	239kw(320HP)	Self-weight	33800kg
Rated speed	2000r/min	Total weight (with ripper)	36800kg
Min.fuel consumption	245g/kw.h	Fuel tank	600L
TRANSMISSION SYSTEM		Hydraulic oil tank	164L
Torque converter	3-element,1-stage,1-phase	Bevel gear oil tank	185L
Cooling method	Water cooled	Final drive case	55L(each side)
HYDRAULIC SYSTEM AND ATTACHMENTS		TRACK
Oil pump type	Gear pump	Width of track shoe	560mm
Rated flow	335L/min	Number of track shoe	41(each side)
Width of tilt blade	4130mm	Track gauge	2140mm
Height of tilt blade	1590mm	Ground pressure	0.093Mpa
Max. lift on ground	1560mm
DRIVE SYSTEM
	1st	2nd	3rd
Forward	3.6km/h	6.6km/h	11.5km/h
Reverse	4.4km/h	7.8km/h	13.5km/h
Sprocket wheel		1(each side)
Number of track roller		7(each side)
Number of carrier roller		2(each side)
Number of idler		1(each side)
