Product Specifications
| Prod Model: |

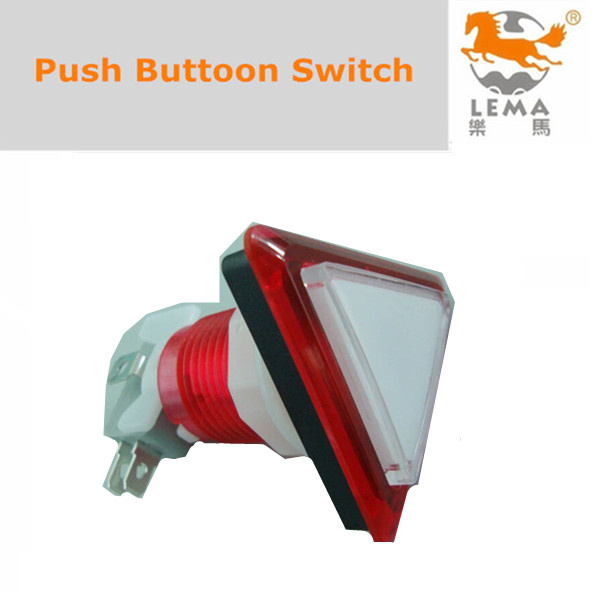

33mm Triangle Illuminated Push Button Switch |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
33mm Triangle Illuminated Push Button Switch |
| Operational Life: |
200 Thousand Times |
| Color: |
Red, Green, Blue, Yellow |
| Square Cover: |
33*50.5 Mm or 33*33 Mm |
| Rating: |
3A 8A 16A @250VAC |
| Meas: |
49*38.5*53 Cm |
| Usage: |
Control Button~@~Start Button~@~Limit Button~@~Res |
| Kind: |
Single-Pole on-off Switch |
| Type: |
Normal Close |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Breaking Form: |
Single Type |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
Product Description
33mm Rectangular illuminated push button switch
Triangle push button switch: Side length: 49.1mm, fixing screw diameter 24 mm
PBS-001: Round cover diameter 34 mm, fixing screw diameter 28 mm for video game
PBS-002: Round cover diameter 34 mm, fixing screw diameter 28 mm
PBS-003: Round cover diameter 33 mm, fixing screw diameter 24 mm
PBS-004: Round cover diameter 46 mm, fixing screw diameter 24 mm
PBS-005: Round cover diameter 60.8 mm, fixing screw diameter 24 mm
PBS-006: Round cover diameter 98 mm, fixing screw diameter 24 mm
PBS-007: Square cover 33*50.5 mm, fixing screw diameter 24 mm
PBS-008: Square cover 33*33 mm, fixing screw diameter 23.8 mm
PBS-009: Round cover diameter 33.9 mm
PBS-010: Round cover diameter 27.4 mm
Other special size can be customized.
Packing
100 pieces / inner box, 1, 000 pieces / Carton
50 pieces / inner box, 500 pieces / Carton
Measuring 49 *38.5*53.5 cm
Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
