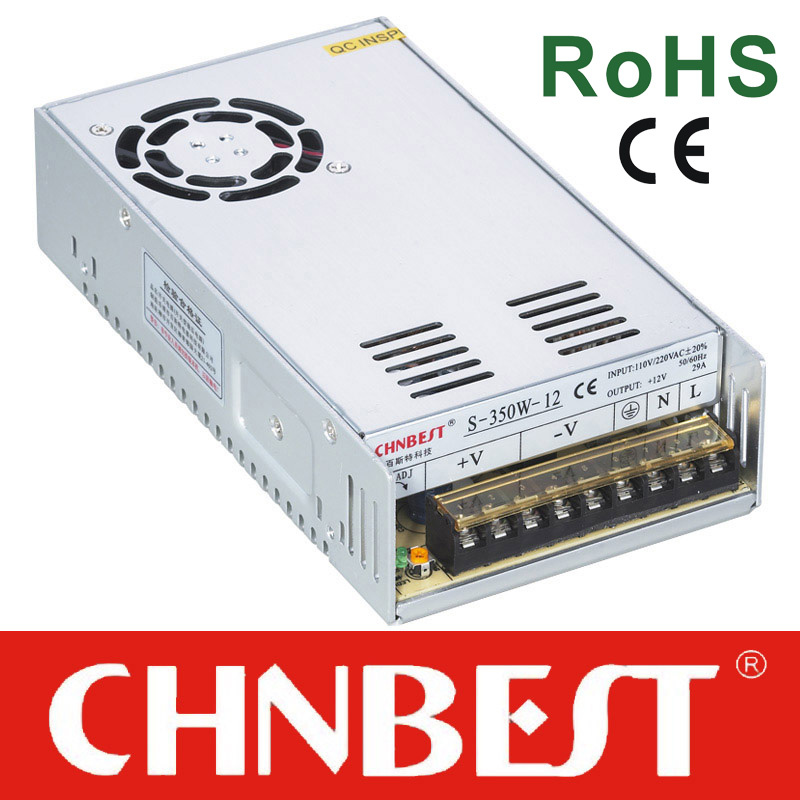

350W Single Output Switching Power Supply (S-350W)

Name: 350W Single Output Switching Power Supply (S-350W)
Brand: China-Manufacturer-Directory.com
SKU: 609740134
Availability: InStock
Rating: 4.8 (75 reviews)

Supplier:	Zhejiang Best Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	S-350W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver
Size:	21511550mm
Output Type:	Single
Output Power:	301 - 400W
Input Voltage:	110-220V
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	>2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Product Description

One of the SMPS Suppliers For Beijing Olympic Games & Shanghai EXPO 2010
100% full load burn-in test
Universal AC input: 110/220± 20%
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage

Specification	S-350-5	S-350-12	S-350-24	S-350-48
DC output	5V 50A	12V 29A	24V 14.6A	48V 7.3A
Wave and noise	100mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
Efficiency	73%	74%	81%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85-132VAC/170-264VAC 47-63Hz
AC Inrush current	Cold-start current 25A/115V 50A/230V
OverLoad protection	105%-150% hiccup mode,auto-recovery
Over-Voltage protection	115%-150% rated output voltage
Setup,rise,hold up time	200ms,50ms,20ms at full load and 230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100MΩ
Working temperature	-10ºC_+50ºC
Safety Standards	Design refer to GB4943,UL60950,EN60950
EMC Standards	Design refer to GB9254,EN55022 Class B
Weight	1.05Kg

Zhejiang Best Electric Co., Ltd. Founded in 2000. Our factory is located in Wenzhou Zhejiang.

With over 16 years of experience in design and manufacture of switching power supplies, we have established long-term relationship with hundreds of big customers in the field of industrial control, telecom, LED, display & lighting of buildings, elevator, laser equipment, TV & broadcasting, computer system, medical equipment, safety control, automotive system, banking equipment

The products include Single output series, Waterproof Series, Rainproof Series, DIN-Rail Series, With PFC Function Series, With Battery Charger Series, DC to DC series, Open Frame Series, Dual Output Series, Triple Output series, Quad Output Series, and custom-design switching power supplies, over 5, 000 models showing great flexibility.

The company is certified by SGS. Over 100 models power supply have acquired CE, RoHS approval, and more are underway. We have various advanced equipment, such as wave soldering and reflow soldering machine, AI component insertion machine, auto chip mounter, ATE, ICT, RoHS testing, environmental testing, EMC testing system, burn-in test room, data acquisition Only top brand international components are adopted for the key parts to ensure long lifetime and high reliability. Each unit is given full load burn-in test. With high quality and market reputation,

We were honored to become main SMPS supplier for Beijing Olympic Games, and Shanghai Expo 2010.

We are confident to offer you total power solutions and become our trustworthy power partner.
