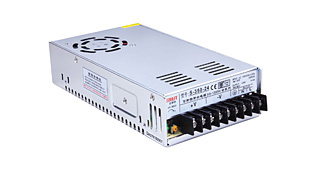

350W Single Way Output Switching Power Supply (S-350-24)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range: AC85~132VAC/170~264V Selected by switch
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) 2 Year Warranty.
Specification:
Single output: 350W
Input Voltage range: AC85~132VAC/170~264V Selected by switch
Size: 215× 115× 50mm
Remark: Size and structure can be adjusted according to client's request.
|
Specification |
Model No. |
|
S-350-5 |
S-350-12 |
S-350-24 |
S-350-48 |
|
DC output |
5V 50A |
12V 29A |
24V 14.6A |
48V 7.3A |
|
Wave and noise |
100mVP-P |
75mVP-P |
75mVP-P |
75mVP-P |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
73% |
74% |
81% |
83% |
|
Adiustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
85~132VAC/170~264VAC Selected by switch 47~63Hz, 240~370VDC |
|
AC Inrush current |
Cold-start current 25A/115V 50A/230V |
|
OverLoad protection |
105%~135% hiccup mode ,auto-recovery |
|
Over-voltage protection |
115%~150% rated output voltage |
|
Setup,rise,hold up time |
200ms, 50ms,20ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1 minute |
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10ºC~+50ºC |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight / Szie |
1.05kg / 215×115×50mm |
| Prod Model: |
S-350-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Output Power: |
350W |
| Input Voltage: |
AC85~132VAC/170~264V Selected by Switch |
| Certification: |
CE,RoHS,CCC,ISO9000 |
