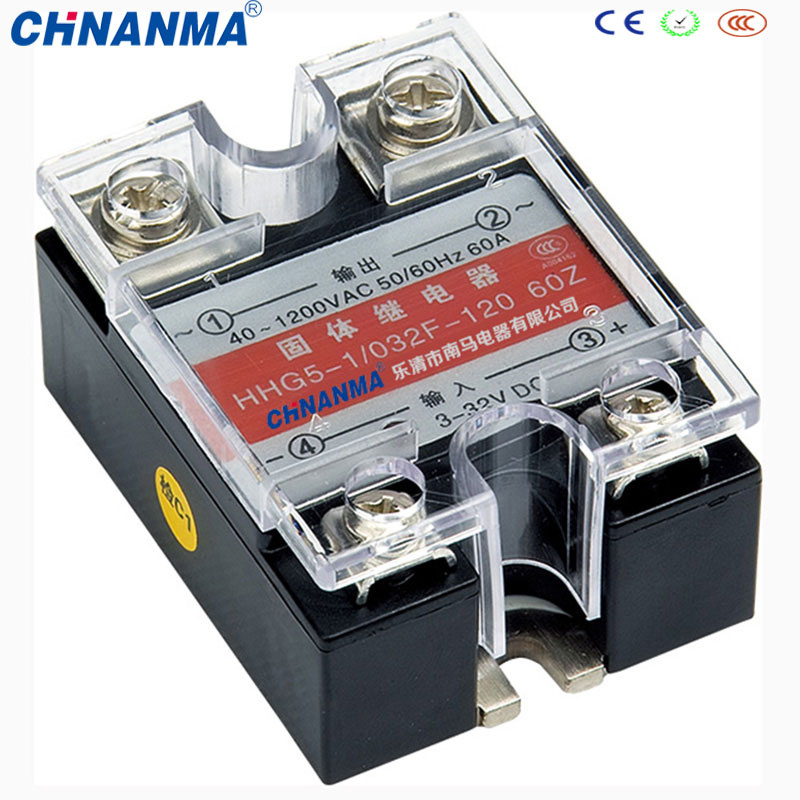

35A Solid State Relays SSR Hhg5-1/032f-120 60-120A

Name: 35A Solid State Relays SSR Hhg5-1/032f-120 60-120A
Brand: china-manufacturer-directory.com
SKU: 766251865
Availability: InStock
Rating: 4.7 (73 reviews)

Supplier:	Yueqing Chnanma Electrical Co., Ltd.
Price:	US $ 2.0-3.8/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HHG5-1/032F-120 60-120A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Period:	1 and Half Year
Material:	ABS+Aluminum
Operational Current:	10 to 40 AMPS
Operational Voltage:	240V or 440V
Dielectric Strength:	1500VAC
The Mode Of Transportation:	Shipping, Air Freight
Control Current:	6-35mA

Product Description

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

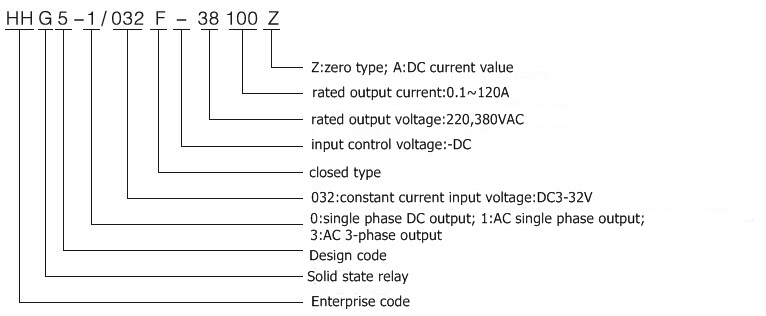

Model Explanation

Specification

Model	HHG5-1/032F-38 60-120A (SSR-DA)
	HHG5-1/032F-120 60-120A (SSR-DA)
Control Voltage	032:3-32VDC
Control Current	6-25mA
Make-on Voltage	3VDC
Break-off Voltage	1VDC
Reverse Voltage	32VDC
Load Voltage	38:40-440VAC;120V:40-1200VAC
Load Current	60,80,100,120A
Instant Voltage	38:1100VAC; 120:1600VAC
Voltage Drop	<1.6VDC
On-off Time	≤10mS
Leakage Current	≤10mA
Dielectric Strength	≥2500VAC
Insulation Resistance	500MΩ,500VDC
Ambient Temperature	minus30 to 80ºC
Indicate Methods	LED

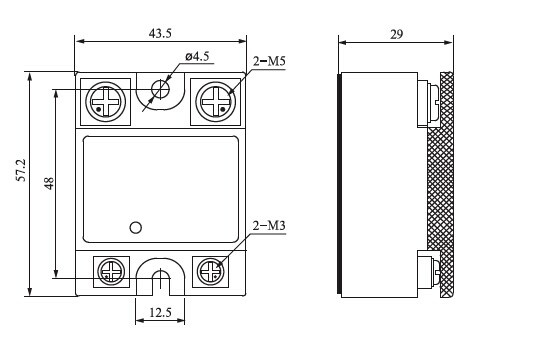

Outline Dimension

Notes for Inquiry

Please specify the control voltage, load voltage, and load current so that we can quote for you soon.
