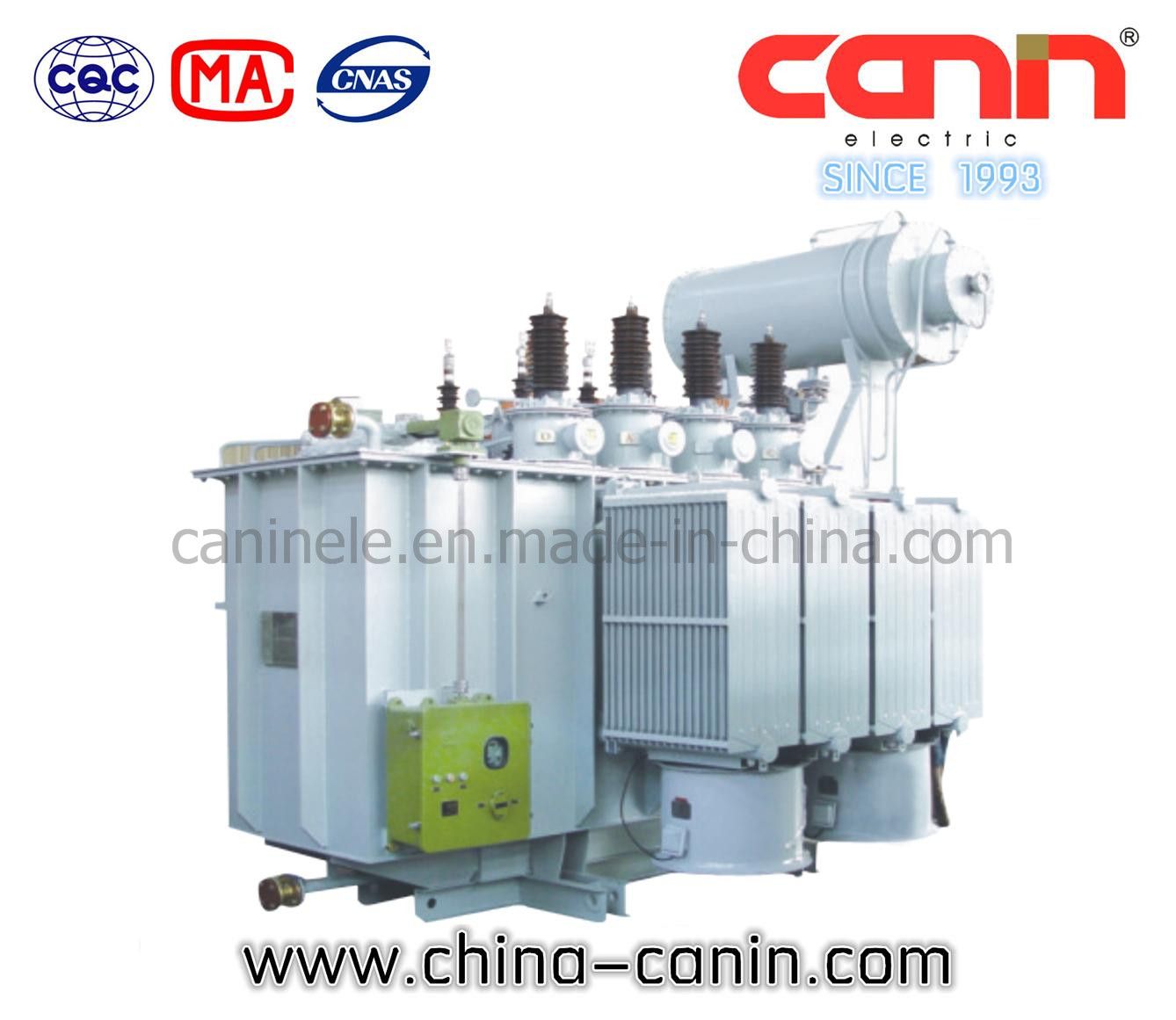

35kv Duplex Winding on-Load Tap Changing Oil Immersed Power Transformer (SZ9)

Name: 35kv Duplex Winding on-Load Tap Changing Oil Immersed Power Transformer (SZ9)
Brand: china-manufacturer-directory.com
SKU: 692936885
Availability: InStock
Rating: 4.3 (67 reviews)

Supplier:	Canin Electric Co., Ltd.
Price:	US $ 15000-20000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	SZ9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Enter Attribute Here (E. G.: Size):	Enter Value Here (E. G.: 12 Inches)
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Application:	Power

Product Description

Up to 35kV Comply with IEC 60076 standard High quality and pretty competitive price !!! It's applied in AC 50Hz, rated work voltage 35KV and below 35KV power system, as small and medium sized substation.

Rated capacity (KVA)	Voltage combination(KV)		Vector group	Loss(KW)		No- load current	Impedance voltage	WeightKG			External dimension mm LBH
Rated capacity (KVA)	HV	LV	Vector group	No- load	load75	No- load current	Impedance voltage	Equipment	Oil	total	External dimension mm LBH
30	35 36.5 38 +5%	0.4	Yyn0	0.165	0.90	2	6.5	145	205	530	101010201425
50				0.21	1.25	2		210	195	585	101010201425
80				0.28	1.80	1.8		285	225	735	106011251560
100				0.31	2.03	1.8		340	225	830	109011501600
125				0.34	2.39	1.7		395	270	950	112011501625
160				0.37	2.85	1.5		475	285	1050	113012801680
200				0.43	3.30	1.5		560	310	1190	117013001710
250				0.52	3.96	1.4		650	350	1355	125013701735
315				0.61	4.77	1.4		760	390	1565	126013701780
400				0.75	5.76	1.3		925	490	1875	181012501865
500				0.87	6.93	1.3		1085	550	2135	185013601920
630				1.05	8.30	1.1		1285	615	2505	190013801990
800				1.25	9.90	1.0		1530	720	2945	210014002075
1000				1.44	12.20	0.7		1845	815	3500	222014302245
1250				1.76	14.70	0.6		1930	935	3975	226014302250
1600				2.15	17.55	0.6		2385	1070	4685	230014602470
2000				2.61	21.50	0.6		2630	1090	4890	238017402350

Canin Electric Co., Ltd. Was founded in 1993, located in Yueqing, the "capital electrical city" of China, with nearly 20 year's experience of designing, manufacturing of Switchgear, Power Transformers, Power Distribution Transformer, Combined Transformer Substation and so on. We continually upgrade manufacturing processes and got the certification of ISO 9001, ISO1400 environment, and CCC system.

Our products are widely used in areas such as transformer substation, switching station, residential areas, mining industries, large-size markets, and some high power request places such as airport, subway and railway.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality and competitive price.
