Hyrite Lighting Co. >> 35W 12V Switch Mode Power Supply for LED Modules with CE

35W 12V Switch Mode Power Supply for LED Modules with CE

Name: 35W 12V Switch Mode Power Supply for LED Modules with CE
Brand: china-manufacturer-directory.com
SKU: 748429985
Availability: InStock
Rating: 4.4 (142 reviews)

Supplier:	Hyrite Lighting Co.
Price:	US $ 5.23-5.50/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	ELDV-12E35B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	3A
Size:	1107835mm
Max. Power:	35W Max
Installation:	Indoor
IP Rating:	IP 20
Cooling:	Free Air Convection
Connection Input/Output:	Terminal
Weight(Kg):	0.2000
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

35W 12V Indoor Constant Voltage LED Driver with CE

1. Features of LED Driver:
- Constant voltage output LED Driver.
- Indoor LED Driver.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2.Specifications of LED Driver

Model no.	ELDV-12E35B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	35W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	3A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Weight(kg)	0.2000

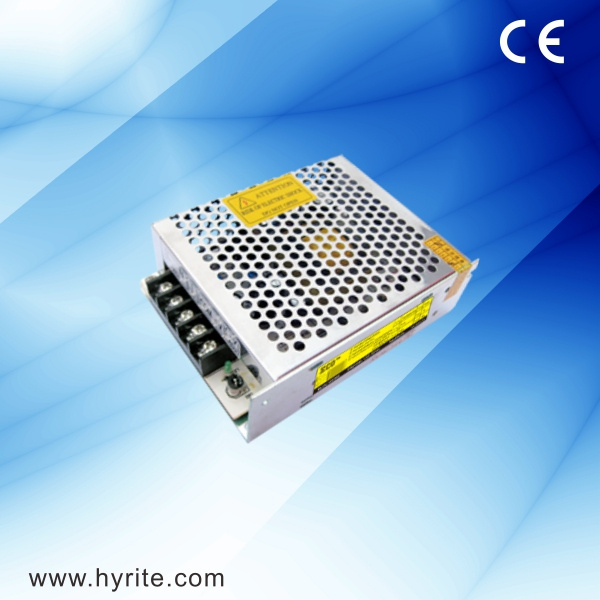

3.Detail pictures of LED driver

4. Applications of LED Driver:
*LED modules and LED strips
*LED light box and channel letter
*LED-neon tube
*Bar light
*Other signage lighting

5.Important Parameter of LED Driver:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
