Product Specifications
| Prod Model: |
HS-35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Single Output(AC/DC to DC),Constant Voltage |
| Type Of Power Supply: |
Metal Case Power Supply |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Dhecn |
Product Description

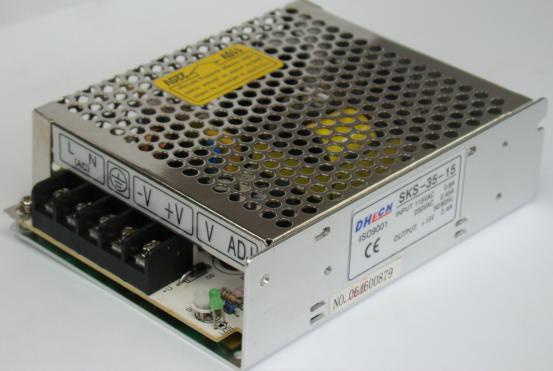

35W Single Output Switching Power Supply
Features:
· High efficiency, high reliability, low cost
· AC input range selected by switch
· Protections: Short circuit / Over load
· LED indicator for powr on
· Fixed switching frequency at 37kHz
· Cooling by free air convection
· 1 year warranty

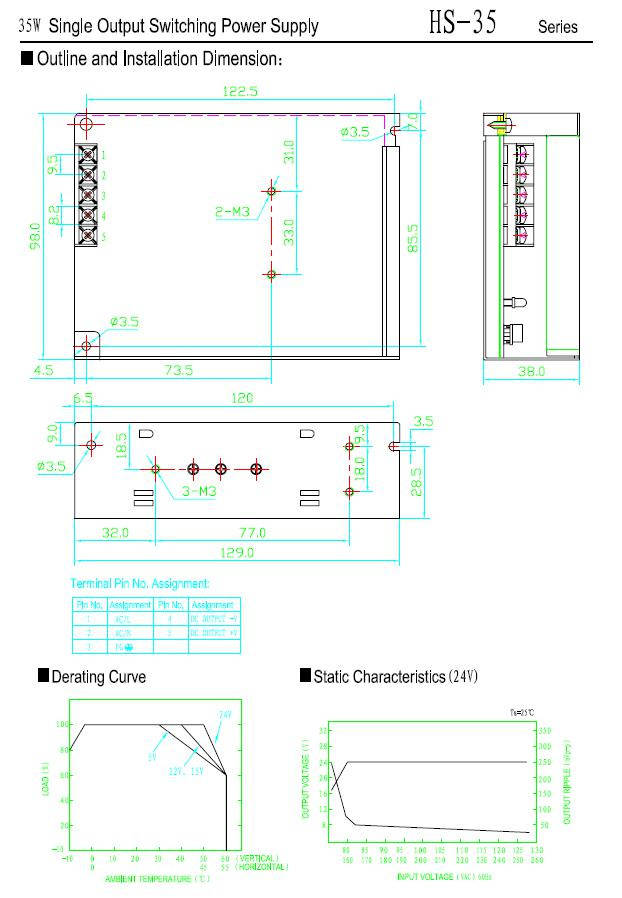

· Dimensions: 129*98*38mm (L*W*H)

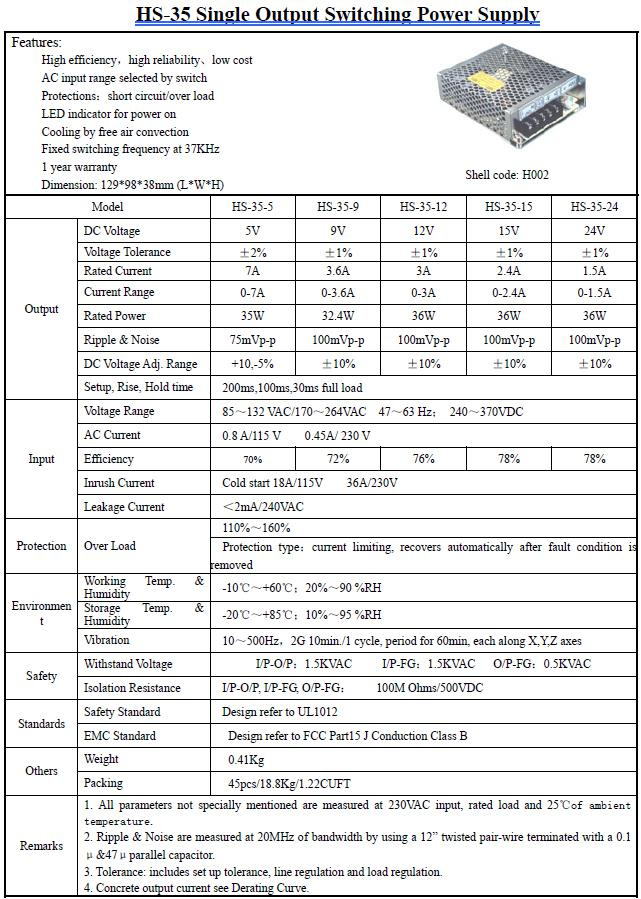

Specification:
1)INPUT
· Voltage Range: 85~132 VAC/170~264VAC47~63 Hz; Selected by switch 240~370VDC
· AC Current: 0.8 A/115 V 0.45A/ 230 V
· Efficiency: 70%(HS-35-5); 72%(HS-35-9); 76%(HS-35-12); 78%(HS-35-15); 78%(HS-35-24);
· Inrush Current: Cold start 18A/115V 36A/230V
· Leakage Current: <2mA/240VAC
2)PROTECTION
· Over Load: 110%~160%; Protection type: Fold back current limiting, recovers automatically after fault condition is removed
3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes
4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012
· EMC Standard: Design refer to FCC Part15 J Conduction Class B
5)OUTPUT
· Model HS-35-5 HS-35-9 HS-35-12 HS-35-15 HS-35-24
· DC Voltage 5V 9V 12V 15V 24V
· Voltage Tolerance ± 2% ± 1% ± 1% ± 1% ± 1%
· Rated Current 7A 3.6A 3A 2.4A 1.5A
· Current Range 0-7A 0-3.6A 0-3A 0-2.4A 0-1.5A
· Rated Power 35W 32.4W 36W 36W 36W
· Ripple & Noise 75 MVP-p 100 MVP-p 100 MVP-p 100 MVP-p 100 MVP-p
· DC Adjustment Range -5%, +10% ± 10% ± 10% ± 10% ± 10%
· Setup, Rise, Hold Time 200ms, 100ms, 30ms at full load
![]()
