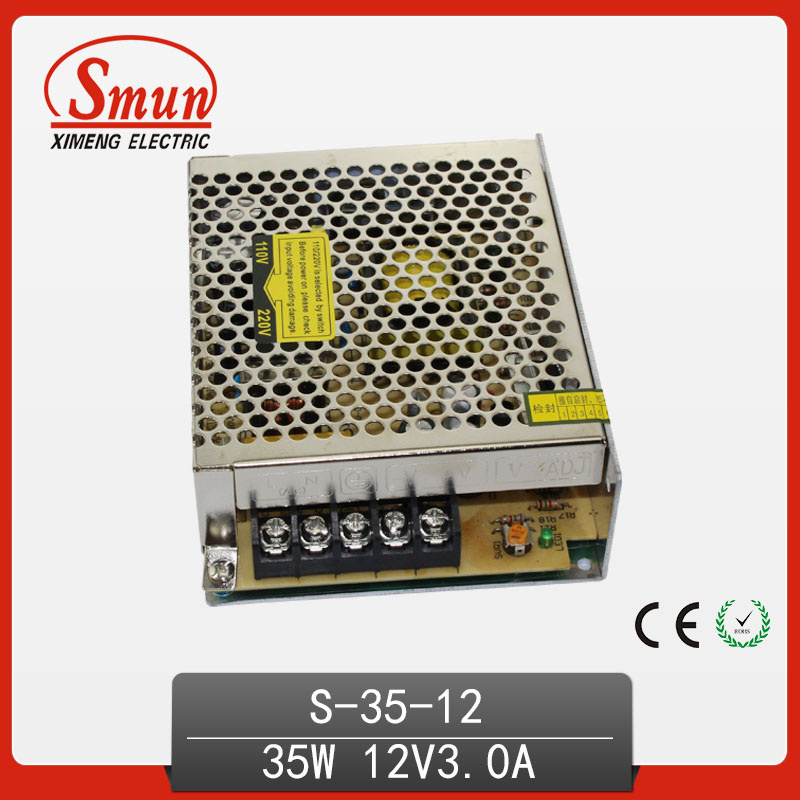

35W Single Output Switching Power Supply

Name: 35W Single Output Switching Power Supply
Brand: China-Manufacturer-Directory.com
SKU: 670216791
Availability: InStock
Rating: 4.7 (126 reviews)

Supplier:	Zhejiang Ximeng Electronic Technology Co., Ltd.
Price:	US $ 4-6/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-35-5, S-35-12, S-35-15, S-35-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model 1:	S-35-5
Model 2:	S-35-12
Model 3:	S-35-15
Model 4:	S-35-24
Size:	1299838mm
Weight:	0.4kg
Package:	45PCS/18kg
Input:	90-264VAC
Warranty Time:	12months
Certificate:	CE RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Input Voltage:	85-132VAC/170-264VAC/47-63Hz/240-370VDC
Certification:	CE CCC RoHS

Product Description

100% full load burn-in test
Protections:short circuit,over load,over current,over temperature
High efficiency,low ripple noise
One year warranty

LED Driver
*Small size,light weight,high efficiency,long life,safety and reliability
*Built-in PFC function
*Protections:Over voltage,Over current ,Over temperature.,Short Circuit
*Waterproof Rank:IP67
*Ideal for outdoor LED lighting,LED street lights,LED tunnel lighting and so on

MODEL		S-35-5	S-35-12	S-35-15	S-35-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	7A	3A	2.4A	1.5A
	RATED POWER	35W	36W	36W	36W
	RIPPLE&NOISE	75mVp-p	100mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ.RANGE	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP,RISE TIME	300ms,50ms/230VAC 800ms,50ms/115VAC at full load
	HOLD UP TIME(TYP.)	90ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85-264VAC 120-370VDC
	FREQUENCY RANGE	47-63HZ
	EFFICIENCY(Typ.)	70%	76%	78%	78%
	AC CURRENT(Typ.)	0.8A/115VAC 0.45A/230VAC
	INRUSH CURRENT	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	2mA/240VAC
PROTECTION	OVERLOAD	105-150% RATED OUTPUT POWER
	OVERLOAD	Protection type:Hiccup mode,recovers automatically after fault condition
	OVER VOLTAGE	5.75V-6.75V	13.8V-16.2V	17.2V-20.25V	27.6V-32.4V
	OVER VOLTAGE	Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENT	WORKING TEMP	-10~+60°C
	WORKING HUMIDITY	20-90%RH non-condesing
	STORAGE TEMP,HUMIDITY	-20~+85°C,10-95%RH
	TEMP.COEFFICIENT	±0.03%°C(0-50°C)
	VIBRATION	10-500HZ
SAFETY&EMC	SAFETY STANDARD	CE RoHS
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
	EMI CONDUCTION&RADIATION	Design refer to GB4943,UL60950,EN60950
	EMC STANDARD	Design refer to GB9254,EN55022 Class A
	DIMENSION	L129W98H38mm
	PACKING	0.4kg,45pcs/18kg

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
