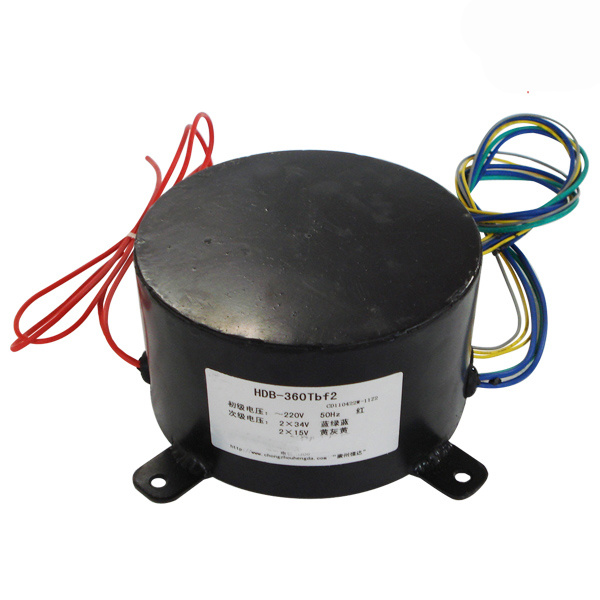

360va Toroidal Transformer Encapsulated by Iron Shell

Name: 360va Toroidal Transformer Encapsulated by Iron Shell
Brand: china-manufacturer-directory.com
SKU: 746017635
Availability: InStock
Rating: 4.9 (90 reviews)

Supplier:	Shenzhen Geao Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HDB-360Tbf2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Voltage Transformer
Application:	Audio

Product Description

360VA Toroidal Transformer Encapsulated by Iron Shell Toroidal/Ring/Annular/Wreathe Electronic Transformer 1) Capacity: 40VA-120VA 2) Certification: CE, RoHS, SGS, CESI and ISO9001 3) Features of Encapsulation: Well encapsulated by iron shell or plastic shell to adapt various outdoor hard working environment. Anti-shock, Anti-moisture, Anti-dust, High anti-strength Small size, nice appearance, high efficiency, low temperature-rise, anti-mildew, anti-moisture 4) Testing Items: No-load Test(No-load Current, No-load Voltage, No-load Loss) Load Test (Load Voltage, Temperature-rise) Inductive Voltage Test DC Resistance Test Safety Test 5) Productivity: Toroidal/annular/ring transformer 3.2 million PCS, EI transformer 3 million PCS annually; Toroidal iron core over 300 tons monthly. 6) Equipment: Equipment: Over 100 sets of Toroidal Winder, 3 EI Transformer Lines, 4 sets of Annealing Furnaces, A set of Nitrogen and Hydrogen Production Equipment, 5 sets of Sheet Cutter, 5 sets of Laser Welder, A set of Automatic Dispenser, A set of Industrial Continuous Ink Jet Printer 7) Workforce: About 400 workers, 26 technicians, 2 senior engineers 8) Main Customer Overseas: ABB, Denmark Foss, Netherlands Inrada, Belguim Connect System, Germany Connectronics GmbH, USA Gallien, Australia JOY, Russia Asteroid, Japan Wireless Tsukamoto, South Korea Choyang Medical Domestic: Chonghong Electric, Tsinghua Tongfang, Hushan Electronic 9) Label Info: Certificate Logo, Basic Electronic Data, Manufacture's Information, also can be printed according to customer's Advice Bar Code available according to customer's advice. 10) Remark: OEM, ODM and Custom designed drawing and samples acceptable All data are subject to modification without notice in advance.

HDB Series Overall Size & Installation Size (More Sizes and VA Available) Toroidal/Ring/Annular/Wreathe Electronic Transformer
Volume (VA)	Type 1		Type 11		Type 111
Volume (VA)	Overall H× θ (mm)	Installation a× b (mm)	Overall H× θ (mm)	Installation a× b (mm)	Overall H× θ (mm)	Installation a× b (mm)
8	33× 65	55× 55	38× 61	45× 45
10	30× 78	70× 70	33× 70	55× 55	38× 62	55× 55
12	32× 81	70× 70	34× 70	55× 55	39× 65	55× 55
15	33× 82	70× 70	35× 72	60× 60	40× 66	55× 55
18	34× 83	70× 70	40× 71	60× 60	50× 68	55× 55
25	35× 88	70× 70	40× 78	60× 60	50× 72	60× 60
40	33× 105	85× 85	36× 92	78× 78	41× 90	70× 70
50	34× 107	85× 85	45× 95	78× 78	50× 90	70× 70
60	50× 95	78× 78	55× 85	70× 70
80	52× 100	78× 78	55× 93	70× 70	70× 78	60× 60
100	52× 105	85× 85	55× 98	78× 78	65× 85	70× 70
120	52× 110	85× 85	68× 102	78× 78	75× 85	70× 70
160	57× 115	95× 95	65× 110	85× 85	70× 112	85× 85
200	60× 128	105× 105	72× 115	85× 85	82× 108	85× 85
250	63× 132	105× 105	75× 118	95× 95	83× 112	85× 85
320	65× 135	105× 105	75× 130	105× 105	80× 118	95× 95
360	78× 130	105× 105	83× 125	95× 95
400	65× 138	105× 105	80× 135	105× 105	93× 120	95× 95
500	78× 137	115× 115	80× 140	115× 115	88× 135	105× 105
600	78× 155	135× 135	85× 145	115× 115	93× 145	105× 105
Remark: 1. H: Height, θ : Diameter, a: Width of Base Plate, b: Length of Base Plate. H× θ is maximum dimension, a× b is standard dimension. 2. This size is HDB series (wire total in Copper), size of HDBLL series (wire total in Aluminum), HDBL, HDB L-L series (wire in Aluminum Clad Copper) is larger a little than this. 3. Dimensions freely adjustable.
