Product Specifications
| Prod Model: |
LZZBJ10-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
CT |
| Small Size: |
Block Type |
| Current Transformer: |
36kv Indoor Epoxy Resin |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

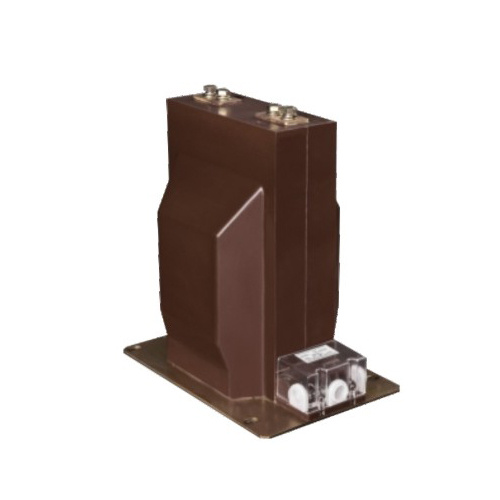

LZZBJ10-36 current transformers (CT) epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body
The product has the feature of lightweight, omni-directional installation, withstanding nastiness and dampness, it is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz-60Hz and highest voltage for equipment 36kV, IEC61869-1&2
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline Drawing
Note:
Please browse our website and download product catalogue for detailed information.
