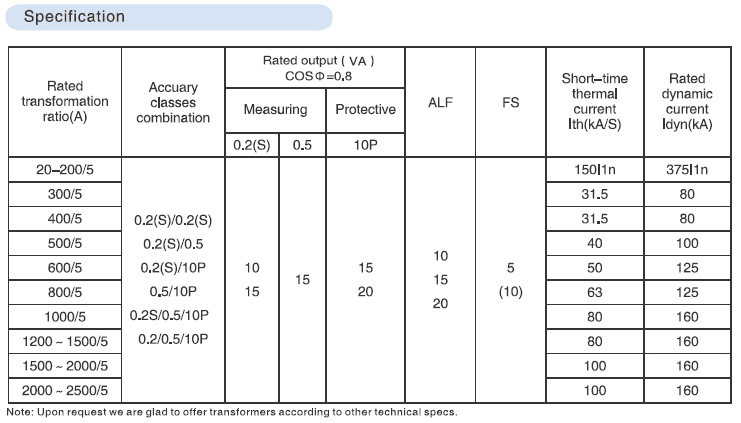

Product Specifications
| Prod Model: |
LZZBJ9-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
CT |
| Large Size: |
Epoxy Resin |
| Current Transformer: |
Current Transformers |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

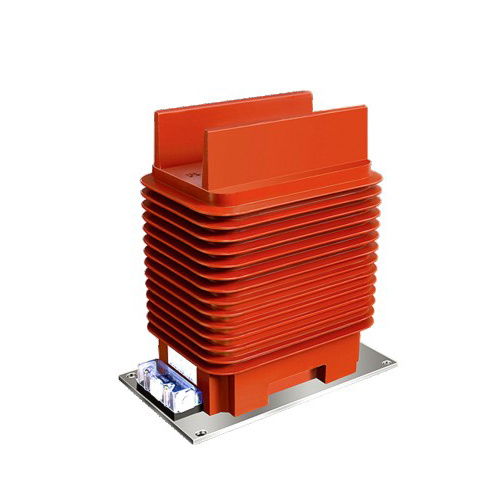

LZZBJ9-36 current transformers (CT) epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body
The product has large periphery insulation creepage distance, withstanding dirtiness and dampness
Suitable for measuring electric capacity, current and protective relaying in the power system of 36kV, IEC61869-1&2

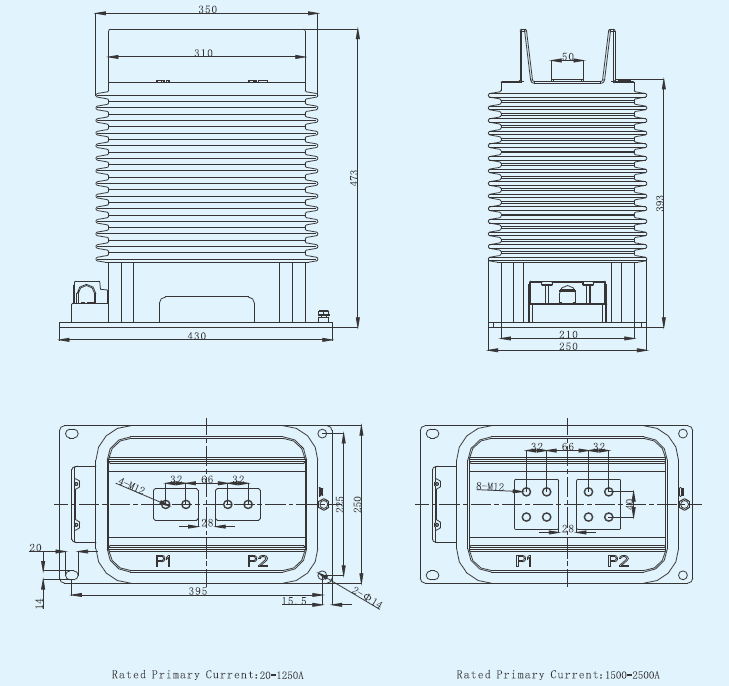

Outline Drawing
