Product Specifications
| Prod Model: |
JDZ-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| 36kv: |
Phase-Phase |
| Double-Pole PT: |
Voltage Transformer |
| Vt: |
Instrument Transformer |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

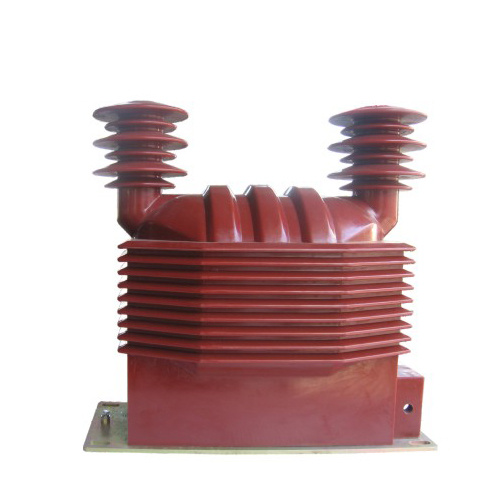

JDZ-35 voltage transformer, indoor/outdoor epoxy resin casting and double pole insulated VT, is widely used for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36 kV (up to 40.5kV)
The iron core adopts advanced cold-rolled silicon steel sheet
High voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC61869-1&3
Commpany Information:
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D,
production and sales of kinds split core current transformers, Rogowski coils,
energy meter components (CT and relay), medium voltage current transformers,
potential transformers, low voltage current transformers and switchgear components.
Work with us, a CT and relay assembly solutions provider that GE and Itron trust
Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA
Specification
| Type | Rated
Primary Voltage
(kV) | Rated
Secondary
Voltage
(kV) | Acuracy
Classes
Combination | Rated
Output(VA)
COS0=0.8 | Thermal
Limiting
Output
(VA) | Rated
Insulation
Level
(kV) |
| JDZ-36 | 33 | 0.11 | 0.2 | 60 | 1000 | 36/70/175 |
| 0.5 | 120 |
| 1 | 200 |
| 0.11/0.11 | 0.2/0.2 | 25/25 | 500 |
| 0.2/0.5 | 25/50 |
| 0.5/0.5 | 50/50 |
Note:Upon request we are glad to offer transformers according to other technical specs.
