Product Specifications
| Prod Model: |
JDZX11-36R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
Voltage Transformer |
| Inbuilt Fuse: |
Sing Pole |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

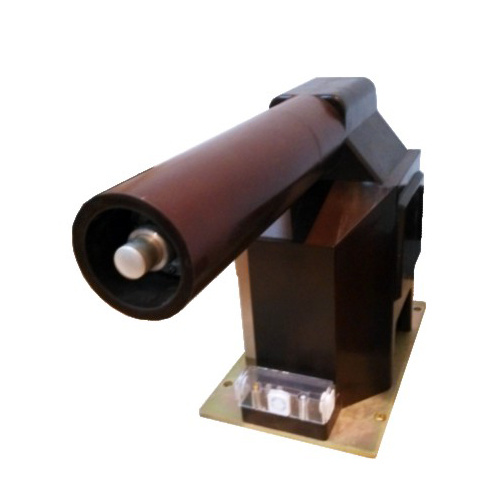

JDZX10-36RG voltage transformer, epoxy resin casting and single pole insulated VT, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 36 kV.
High voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC61869-1 & 3
Main technical parameter
1. Rated primary voltage: 33/ kV or 34.5/ kV or 35/ kV etc.
2. Rated secondary voltage:100/ V,110/ V , 115/ V, 120/ V
3. Rated voltage of residual voltage windings:100/ 3V ,110/ 3V, 115/ 3V, 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 Instrument transformers-Part2: Inductive Voltage transformers
Other technical parameters pls see as follow:
| Type | Rated primary
voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
| JDZX10-36RG | 33/
34.5/
35/ | 0.1/
0.11/
0.12/ | 0.2 | 25 | 600 | 36/70/170 |
| 0.5 | 50 |
| 1 | 100 |
0.1/ /0.1/3
0.11/ /0.11/3
0.12/ /0.12/3
| 0.2/6P(3P) | 20/50 | 600 |
| 0.5/6P(3P) | 50/50 |
| 1/6P(3P) | 80/50 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

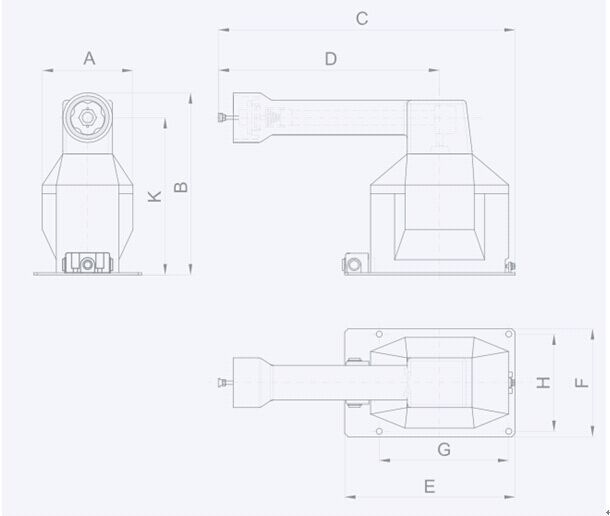

Outline drawing
A-210mm
B---422mm
C---688mm
D---513mm
E---395mm
F---250mm
G---300mm
H---225mm
K---364mm
