36kv Indoor Small Size Current Transformer (20~1000/5, 0.2S~10P)
Product Specifications
| Prod Model: |
LZZ7-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
CT |
| 36kv: |
Small Size |
| Current Transformer: |
Current Transformers |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

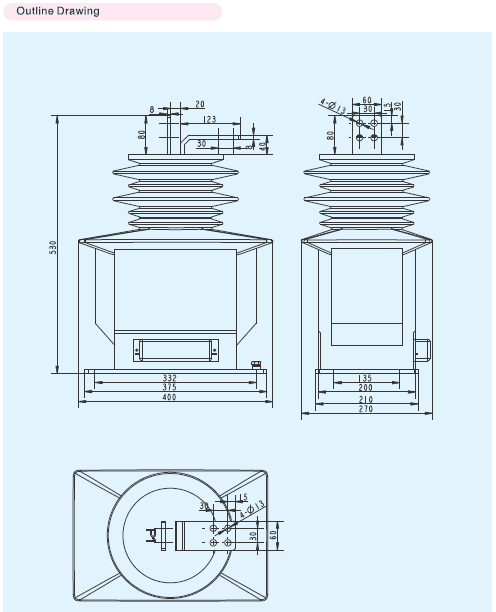

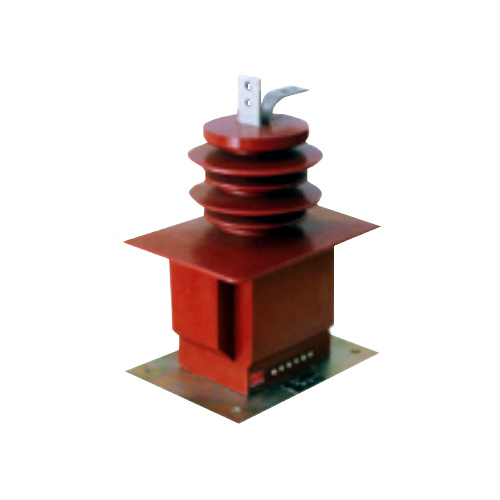

LZZ7-36 current transformer is casting resin and full-enclosed support type product. It is used indoor for metering current and electric energy, protective relaying in the electrical system of rated frequency 50Hz or 60Hz and highest voltage for equipment 36kV(Up to 40.5kV). The transformers can be executed according to the standards IEC60044-1:2003.
Main technical parameter - Rated voltage: 30 kV or 33 kV or 34.5kV or 35kV etc
- Rated secondary current: 5A or 1A
- Rated insulation level: 36/70/170 kV (40.5/95/200 kV)
- Burden power factor: cos¢=0.8(lagging)
- Other technical parameter pls see as follow:
| Rated primary current (A) | Secondary accuracy classes combination | Rated output
(VA) | Rated short-time thermal current (kA/S) | Rated dynamic current ( kA) |
| 0.2(S) | 0.5 | 10P |
| 20-200/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2/(S)10P
0.5/10P
0.2S/0.5/10P
0.2/0.5/10P | 10
15 | 15 | 15
20 | 150I1n | 375I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 63 | 125 |
| 1000/5 | 80 | 160 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
