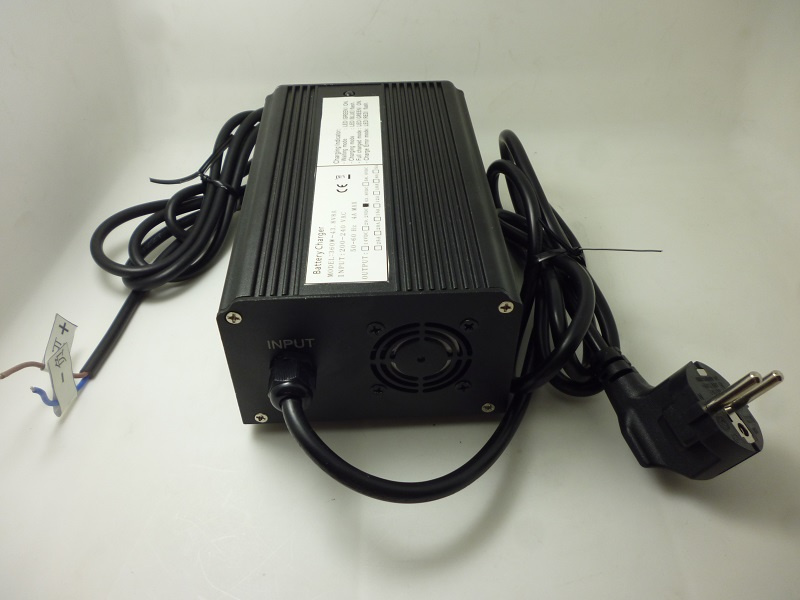

36V 8A lithium lifepo4 battery charger with aluminium alloy case for electric scooter
Model | LifePo4 battery charger |
Input | 100-240Vac 50/60Hz |
Input plug(power cords) | EU US UK AUS Korea Brazil Italy Plugs (Customized) |
Battery voltage | 3.2V/cell |
Output | 4S 14.6V4A for 12V Lifepo4 battery pack |
8S 29.2V3A for 24V Lifepo4 battery pack | |
12S 43.8V8A for 36V Lifepo4 battery pack | |
16S 58.4V5A for 48V Lifepo4 battery pack | |
Our Max Power of Charger | 350Watts |
Highest Charge Voltage | 3.65V for 3.2V lifepo4 battery pack |
Charge mode | 2-stage Mode: CC---CV |
Led Indicator(Dual Color) | Red---in Charging; Green--Finish charge/ no load |
Led Switch current | 10-15% of charge current |
Safe Protection | Over-load protection Over-current protection |
Short circuit protection Polarity Reverse Protection | |
Safe Certificate | CE ROHS CB GS FCC UL SAA PSE KC |
Efficiency | >80% |
Output Connector | DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug.etc |
Power Consumption | ≤0.5W at Rated Voltage(adapter at no load) |
Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv |
High-Voltage test | Primary to secondary: 3 kV / 5mA 60S |
Leakage Current | 0.5mA(max) at input 240V AC |
Drop Test | 0.75m drop test, 6 times |
Burn-In Test | 100% load, 5hours |
MTBF | 50,000 hours@ 25°C |
Application | UPS, E-bike, Motor, Scooter, Solar systems, flash Torch, etc. |
Application: LED Torch Flashlight,LED lamps,Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone, MP3/MP4, Boat Device, Rechargeable Bus and so on.
Prod Model: | QW438-080-F |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Desktop Type: | Yes |
Battery Type: | LiFePO4 Battery |
Input Voltage: | 43.8V |
Input Plug: | OEM |
Warranty: | One Year |
Type: | Lithium Battery |
Charger Type: | Electric Charger |
Nominal Voltage: | 43.8V |
Socket Type: | OEM |
