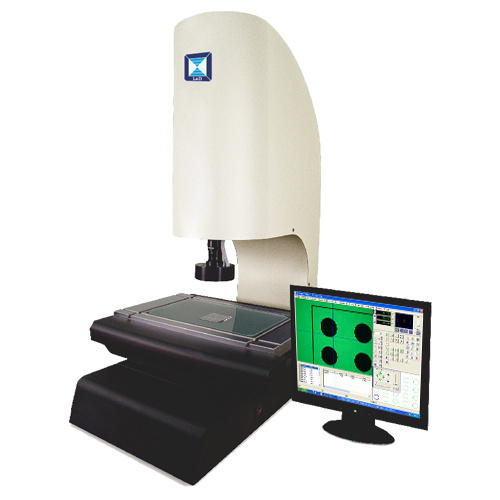

3D CNC Multi-Sensor Coordinate Measuring Machine (CV-400)
| Price: |
US $ 15000-16000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
CV-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
CV400 |
| Stage Size (Mm): |
606 X 466 |
| Glass Size (Mm): |
450 X 350 |
| Travel Of Xyz: |
370*270*150mm |
| Driving System: |
Servo Motor Control |
| Speed: |
200 Mm/S |
| Resolution Of X/Y/Z-Axis: |
0.0005 Mm |
| Positioning Accuracy: |
0.001 Mm |
| Accuracy: |
3.0 + L/75 |
| Software: |
Quick Image Measuring Software Qim-5008 & USB |
Product Description
3D CNC Multi-Sensor Coordinate Measuring Machine (CV-400)Feature:Step servo, high positioning accuracy and smooth movement
Advanced Navitar 0.7-0.45x zoom lens
Japan SENTECH Color 1/2" CCD Camera
Joystick and mouse operation, easy to use
Granite base
Programmable LED cold lights
Automatic software
Fast Auto Focus.

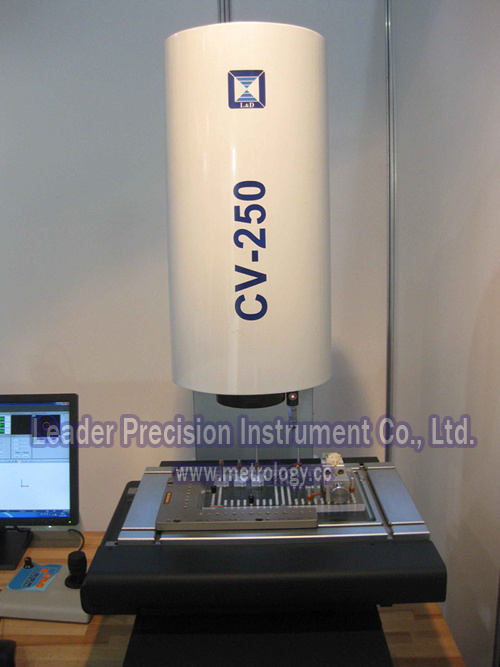

Specification:| Model | CV250 | CV300 | CV400 |
| Stage Size (mm) | 450 x280 | 500 x 300 | 606 x 466 |
| Glass Size (mm) | 306*196 | 350 x 280 | 450 x 350 |
| Travel (mm) | X axis | 220 | 270 | 370 |
| Y axis | 120 | 170 | 270 |
| Z axis | 150 (for focus) | 150 (for focus) | 150 (for focus) |
| Driving System | Servo Motor Control |
| Speed | 200 mm/s |
| Resolution of X/Y/Z-axis | 0.0005 mm(0.5μ m) |
| Positioning Accuracy | 0.001 mm(1 μ m) |
| Accuracy | ≤ 3.0 + L/75 (μ m) |
| Software | Quick Image Measuring software QIM-5008 & USB |
| Video System | ? CCD Camera: JapanSENTECH Color 1/2" CCD Camera
? Lightening System: Cold-light source Surface and Transmission illumination
? Zoom Lens: U. S. A Navitar Zoom Lens
? Magnification of field lens: 0.7X-4.5X
? Total Magnifications: 30X-190X
? Object View: 10.6mm-1.6mm |
| Weight (KG) | 145 | 170 | 270 |
| Power Supply | AC220V/110V 50/60 Hz |
