Product Specifications
| Prod Model: |
OMNI 1325 ATC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Name: |
3D Wood Router CNC Machine with Atc |
| Working Area: |
1300*2500*200mm |
| Table Size: |
1500*3040mm |
| Table Surface: |
Bakelite Table Combined T-Slot,Vacuum Table |
| Spindle: |
Italy Hsd Aircooling Spindle |
| CNC Control System: |
Taiwan Syntec Controller |
| Driver And Motor: |
Japan Yaskawa Driver and Motor |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Drive System X,Y Axis: |
Rack and Pinion,Hiwin Rail Linear Bearing Square |
| Drive System Z Axis: |
Taiwan Tbi Ballscrew,Hiwin Rail Linear Bearing |
| Spindle Layout: |
Horizontal |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
CE |
| Color: |
Milk White |
Product Description

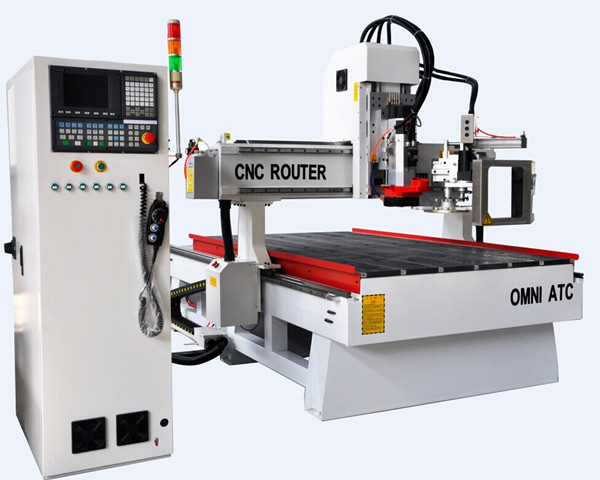

3D Engraver Wood Router cnc Machine with Automatic Tool Change
The cnc router could be used for composite fabrication, aluminum and non-ferrous metal engraving and cutting, architectural model, plastic, acrylic, PVC, wood board etc cutting and engraving, cabinet, production, nested based machining, solid surface processing, three-dimensional pattern/mold making, wood carving etc.
Furniture: Ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
. Well-suitable for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
. Decoration acrylic, PVC, density board, artificial stone, organic glass, soft metals like Aluminum and Copper.
. Designed to meet diverse and complicated processing requirements, highly versatile with routing, cutting and other functions.
. Features world top class mechanical and electronic components, e. G, Japanese servo driver and gear reducer, Italian high power automatic tool changing spindle, French low-voltage electrical components, which guarantee stable performance and high finishing quality.
. 8-slots carousel tool changer, tool changes to be performed with 8 seconds.
. Vacuum worktable fitted with aluminum alloy bars and suction cups is rigid yet, flexible for various configurations. Cropping the full sheet to your ideal size, routing, cutting, and milling-multiple functions, all in one.
Welcome to be the partner of OMNI.
Jinan OMNI CNC Technology Co., Ltd. is enterprise specializing in manufacturing, marketing and R&D of CNC router, laser and CNC plasma cutting machine. OMNI supply machines to a wide variety of manufacturing sectors including aerospace, automotive, marine, recreational vehicles, 3D sculpture, concept models, pattern making, formed plastics and wood working, sign.
